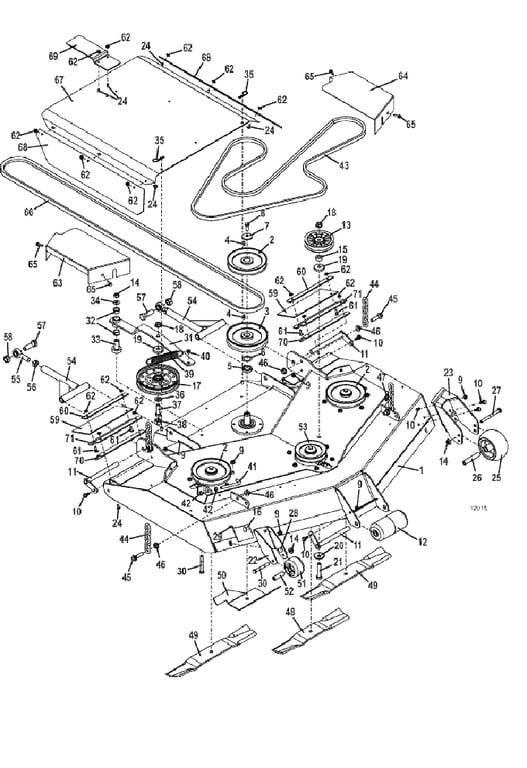

M1 Deck Assembly - M148R - 2014
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 645154 - M148R Mower Deck | Call For Details | |
| 2 | 415892 - Sheave | Add To Cart | |
| 3 | 831537 - Sheave | Add To Cart | |
| 4 | 281580 - Square Key | Add To Cart | |
| 5 | 282615 - Spacer | Add To Cart | |
| 6 | 257106 - Washer | Add To Cart | |
| 7 | 257041 - Cupped Washer | Add To Cart | |
| 8 | 243331 - Hex Bolt | Add To Cart | |
| 9 | 253035 - Whiz Nut | Add To Cart | |
| 10 | 253192 - Hex Flange Bolt Whiz | Add To Cart | |
| 11 | 644512 - Roller Lock Pin | Add To Cart | |
| 12 | 603725 - Center 2 Piece Roller Assembly | Add To Cart | |
| 13 | 393225 - Idler | Add To Cart | |
| 14 | 253043 - Whiz Nut | Add To Cart | |
| 15 | 902313 - Spacer | Add To Cart | |
| 16 | 776231 - Roller Spacer | Add To Cart | |
| 17 | 393250 - Idler | Add To Cart | |
| 18 | 253067 - Flange Spiral Lock Nut | Add To Cart | |
| 19 | 257160 - Washer | Add To Cart | |
| 20 | 257059 - Washer | Add To Cart | |
| 21 | 243590 - Hex Bolt | Add To Cart | |
| 22 | 754203 - Right Formed Roller Mount M1/M248 | Add To Cart | |
| 23 | 645579 - Left Anti Scalp Roller | Add To Cart | |
| 24 | 253176 - Bolt Whiz Truss | Add To Cart | |
| 25 | 484230 - Anti-Scalp Center Hub Wheel | Add To Cart | |
| 26 | 942137 - Tube Bearing | Add To Cart | |
| 27 | 247310 - Carriage Bolt | Add To Cart | |
| 28 | 247135 - Carriage Bolt | Add To Cart | |
| 29 | 253193 - Hex Flange Bot Whiz | Add To Cart | |
| 30 | 243365 - Hex Bolt | Add To Cart | |
| 31 | 824464 - Idler Arm | Call For Details | |
| 32 | 121756 - Oilite Bearing | Add To Cart | |
| 33 | 121650 - Pedestal Bearing | Add To Cart | |
| 34 | 257040 - Washer | Add To Cart | |
| 35 | 260523 - Hair Pin | Add To Cart | |
| 36 | 257062 - Washer | Add To Cart | |
| 37 | 243575 - Hex Bolt | Add To Cart | |
| 38 | 423670 - Idler Arm Stabilizer Cap | Add To Cart | |
| 39 | 283848 - Extension Spring | Add To Cart | |
| 40 | 422520 - Nylon Bearing | Add To Cart | |
| 41 | 730391 - Idler Adjustment 'J' Bolt | Add To Cart | |
| 42 | 254450 - Nut | Add To Cart | |
| 43 | 382082 - Deck Belt | Add To Cart | |
| 44 | 820331 - 5 Links M1 Chain | Add To Cart | |
| 45 | 243458 - Hex Bolt GR 8 | Add To Cart | |
| 46 | 253058 - Nut Whiz | Add To Cart | |
| 47 | 254431 - Speed Nut | Add To Cart | |
| 48 | 320231 - Medium Lift 15' Blade | Call For Details | |
| 49 | 320236 - 18 Med Lift Blade | Call For Details | |
| 50 | 766025 - Grass Thrower | Add To Cart | |
| 51 | 426122 - Roller | Add To Cart | |
| 52 | 902284 - Roller Mount Spacer | Add To Cart | |
| 53 | 415902 - Big Split Sheave | Add To Cart | |
| 54 | 604676 - Radius Arm Assembly M1 300 (NOT 300B) | Add To Cart | |
| - | 604675 - Radius Arm Assembly M1 200 and 300B | Add To Cart | |
| 55 | 265665 - Rod End | Add To Cart | |
| 56 | 254493 - Nut | Add To Cart | |
| 57 | 243810 - Hex Bolt | Add To Cart | |
| 58 | 253970 - Lock Nut | Add To Cart | |
| 59 | 424228 - M148R Deck Flap | Call For Details | |
| 60 | 782360 - M148R Flap Strap | Call For Details | |
| 61 | 253177 - Bolt Whiz Truss | Add To Cart | |
| 62 | 253025 - Nut Whiz | Add To Cart | |
| 63 | 722997 - Right Belt Shield | Call For Details | |
| 64 | 722998 - Left Belt Shield | Call For Details | |
| 65 | 253175 - Hex Bolt Whiz | Add To Cart | |
| 66 | 382076 - Belt for 321D | Add To Cart | |
| - | 382080 - Belt for 223, 225, and 227 | Add To Cart | |
| - | 382082 - Belt for 329B | Add To Cart | |
| - | 382083 - Belt 329 | Add To Cart | |
| 67 | 645759 - M1R Discharge Shield | Add To Cart | |
| 68 | 424225 - Side Shield Flaps | Add To Cart | |
| 69 | 766015 - Shield Holder | Add To Cart | |
| 70 | 766079 - M148R 200S Deflector | Call For Details | |
| 71 | 766086 - Flap Extension | Call For Details |
