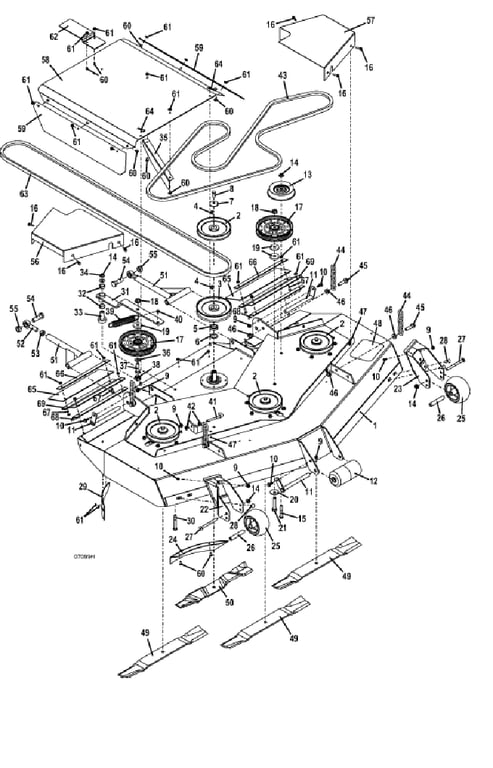

M1 Deck Assembly - M161R - 2012
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 645171 - M161R Deck | Call For Details | |
| 2 | 415892 - Sheave | Add To Cart | |
| 3 | 831537 - Sheave 322D and 430D | Add To Cart | |
| - | 831538 - Sheave for 223, 227, 325D, 327 EFI, 329, 329B, and 335B | Add To Cart | |
| - | 831542 - Sheave for 432 | Add To Cart | |
| 4 | 281580 - Square Key | Add To Cart | |
| 5 | 282615 - Spacer | Add To Cart | |
| 6 | 257106 - Washer | Add To Cart | |
| 7 | 257041 - Cupped Washer | Add To Cart | |
| 8 | 243331 - Hex Bolt | Add To Cart | |
| 9 | 253035 - Whiz Nut | Add To Cart | |
| 10 | 253192 - Hex Flange Bolt Whiz | Add To Cart | |
| 11 | 644512 - Roller Lock Pin | Add To Cart | |
| 12 | 603725 - Center 2 Piece Roller Assembly | Add To Cart | |
| 13 | 831432 - Sheave - M152/61 RR Decks | Add To Cart | |
| 14 | 253043 - Whiz Nut | Add To Cart | |
| 15 | 243355 - Hex Bolt | Add To Cart | |
| 16 | 253175 - Hex Bolt Whiz | Add To Cart | |
| 17 | 393250 - Idler | Add To Cart | |
| 18 | 253067 - Flange Spiral Lock Nut | Add To Cart | |
| 19 | 883804 - Washer | Add To Cart | |
| 20 | 257059 - Washer | Add To Cart | |
| 21 | 243590 - Hex Bolt | Add To Cart | |
| 22 | 645581 - Anti-Scalp Roller RT Mount R Deck | Add To Cart | |
| 23 | 645579 - Anti-Scalp Roller LT Mount R Deck | Add To Cart | |
| 24 | 645570 - Bolt In Shroud - M161R | Call For Details | |
| 25 | 484230 - Anti-Scalp Center Hub Wheel | Add To Cart | |
| 26 | 942137 - Tube Bearing | Add To Cart | |
| 27 | 247310 - Carriage Bolt | Add To Cart | |
| 28 | 247135 - Carriage Bolt | Add To Cart | |
| 29 | 855004 - Rear Shroud Extension - M161R | Call For Details | |
| 30 | 243365 - Hex Bolt | Add To Cart | |
| 31 | 824466 - Idler Arm - M161 & 72R | Call For Details | |
| 32 | 121756 - Oilite Bearing | Add To Cart | |
| 33 | 121650 - Pedestal Bearing | Add To Cart | |
| 34 | 257040 - Washer | Add To Cart | |
| 35 | 722885 - Deflector - Shield Discharge | Add To Cart | |
| 36 | 257062 - Washer | Add To Cart | |
| 37 | 243575 - Hex Bolt | Add To Cart | |
| 38 | 423670 - Idler Arm Stabilizer Cap | Add To Cart | |
| 39 | 283848 - Extension Spring | Add To Cart | |
| 40 | 422520 - Nylon Bearing | Add To Cart | |
| 41 | 730391 - Idler Adjustment 'J' Bolt | Add To Cart | |
| 42 | 254450 - Nut | Add To Cart | |
| 43 | 382090 - Belt | Add To Cart | |
| 44 | 820331 - 5 Links M1 Chain | Add To Cart | |
| 45 | 243458 - Hex Bolt GR 8 | Add To Cart | |
| 46 | 253058 - Nut Whiz | Add To Cart | |
| 47 | 254431 - Speed Nut | Add To Cart | |
| 48 | 420904 - Foot Rest Ext Tread | Add To Cart | |
| 49 | 320242 - 21 Med Lift Blade | Call For Details | |
| 50 | 320240 - 18 Hi-Low Mulch Blade | Call For Details | |
| 51 | 604673 - Radius Arm Assembly for M1 400 | Add To Cart | |
| - | 604675 - Radius Arm Assembly for M1 200 and 300B | Add To Cart | |
| - | 604676 - Radius Arm Assembly for M1 300 (NOT 300B) | Add To Cart | |
| 52 | 265665 - Rod End | Add To Cart | |
| 53 | 254493 - Nut | Add To Cart | |
| 54 | 243810 - Hex Bolt | Add To Cart | |
| 55 | 253970 - Lock Nut | Add To Cart | |
| 56 | 722451 - Mid 61 RT Belt Shield | Add To Cart | |
| 57 | 722452 - Mid 61 LT Belt Shield | Add To Cart | |
| 58 | 645759 - M1R Discharge Shield | Add To Cart | |
| 59 | 424225 - Shield Side Flap | Add To Cart | |
| 60 | 253176 - Bolt Whiz Truss | Add To Cart | |
| 61 | 253025 - Nut Whiz | Add To Cart | |
| 62 | 766015 - Shield Holder | Add To Cart | |
| 63 | 382080 - Belt for 223, 225, and 227 | Add To Cart | |
| - | 382082 - Belt for 327 EFI, 329B, and 335B | Add To Cart | |
| - | 382083 - Belt for 325D and 329 | Add To Cart | |
| - | 382087 - Belt for 322D | Call For Details | |
| - | 382088 - Belt for 430D | Add To Cart | |
| - | 382094 - Belt for 432 | Add To Cart | |
| 64 | 260523 - Hair Pin | Add To Cart | |
| 65 | 424219 - M161R Deck Flap | Add To Cart | |
| 66 | 782348 - M161R Flap Strap | Call For Details | |
| 67 | 253177 - Bolt Whiz Truss | Add To Cart | |
| 68 | 766081 - Deflector | Call For Details | |
| 69 | 766084 - Flap Extension | Call For Details |
