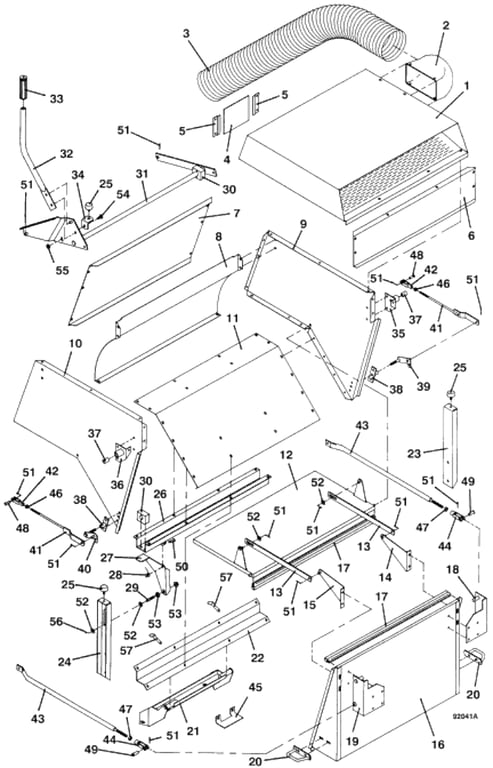

Model 12 Lever Action Hopper Assembly - Serial Number 5299999 & Below
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 643203 - Cover Mod 12 | Call For Details | |
| 2 | 821005 - Vacuum Hose Inlet Adapter | Add To Cart | |
| 3 | 424408 - 57' Flex Hose | Add To Cart | |
| 4 | 423504 - Inspection Window | Add To Cart | |
| 5 | 720131 - Window Clip | Add To Cart | |
| 6 | 721269 - Back Panel Mod 12 | Add To Cart | |
| 7 | 721417 - Front Panel Mod 12 | Call For Details | |
| 8 | 854168 - Front Inside Panel | Call For Details | |
| 9 | 721480 - Side Panel Mod 12 | Add To Cart | |
| 10 | 721481 - Left Side Panel Mod 12 | Add To Cart | |
| 11 | 721414 - Bottom Panel Mod 12 | Add To Cart | |
| 12 | 643954 - Platform Pivot Mod 12 | Add To Cart | |
| 13 | 782566 - Linkage Strap mod 12 | Call For Details | |
| 14 | 643067 - Right Arm Linkage | Call For Details | |
| 15 | 643068 - Left Arm Linkage | Call For Details | |
| 16 | 643279 - Door Mod 12 | Add To Cart | |
| 17 | 822502 - Door Seal Mod 12 | Add To Cart | |
| 18 | 643410 - Right Door Hinge | Add To Cart | |
| 19 | 643411 - Left Door Hinge | Add To Cart | |
| 20 | 643122 - Latch Bracket | Add To Cart | |
| 21 | 643478 - Hopper Mount Mod 12 | Call For Details | |
| 22 | 643250 - Hopper Mount Channel | Call For Details | |
| 23 | 729250 - Right Upright Hopper Mount | Call For Details | |
| 24 | 729251 - Left Upright Hopper Mount | Add To Cart | |
| 25 | 424052 - Rubber Bumper | Add To Cart | |
| 26 | 643206 - Upper Channel | Call For Details | |
| 27 | 729152 - Latch Mod 12 | Add To Cart | |
| 28 | 284417 - Torsion Spring | Add To Cart | |
| 29 | 780386 - Pin Latch | Add To Cart | |
| 30 | 822305 - Pivot Bearing | Add To Cart | |
| 31 | 643246 - Lever Mount Mod 12 | Call For Details | |
| 32 | 734075 - Hopper Handle | Add To Cart | |
| 33 | 422175 - Handle Grip | Add To Cart | |
| 34 | 732592 - Hopper Lever Stop | Add To Cart | |
| 35 | 643541 - Right Door Hinge Mount | Add To Cart | |
| 36 | 643542 - Left Door Hinge Mount | Add To Cart | |
| 37 | 422580 - Nylon Bearing | Add To Cart | |
| 38 | 643148 - Latch Pivot Bracket | Add To Cart | |
| 39 | 643512 - Right Side Door Latch | Add To Cart | |
| 40 | 643513 - Left Side Door Latch | Add To Cart | |
| 41 | 643453 - Latch Linkage Mod 12 | Add To Cart | |
| 42 | 265537 - Clevis Yoke | Add To Cart | |
| 43 | 643720 - Door Linkage Rod | Add To Cart | |
| 44 | 265545 - Clevis Yoke | Add To Cart | |
| 45 | 900160 - Axle Beam Spacer | Add To Cart | |
| 46 | 254441 - Nut | Add To Cart | |
| 47 | 254452 - Nut | Add To Cart | |
| 48 | 261284 - Clevis Pin | Add To Cart | |
| 49 | 261346 - Clevis Pin | Add To Cart | |
| 50 | 261338 - Clevis Pin | Call For Details | |
| 51 | 260648 - Cotter Pin | Add To Cart | |
| 52 | 257030 - Washer | Add To Cart | |
| 53 | 253043 - Whiz Nut | Add To Cart | |
| 54 | 247130 - Carriage Bolt | Add To Cart | |
| 55 | 253035 - Whiz Nut | Add To Cart | |
| 56 | 260523 - Hair Pin | Add To Cart | |
| 57 | 260400 - Hitch Pin | Add To Cart | |
| 58 | 503212 - Lever Actuated Hopper Mod 12 | Call For Details |
