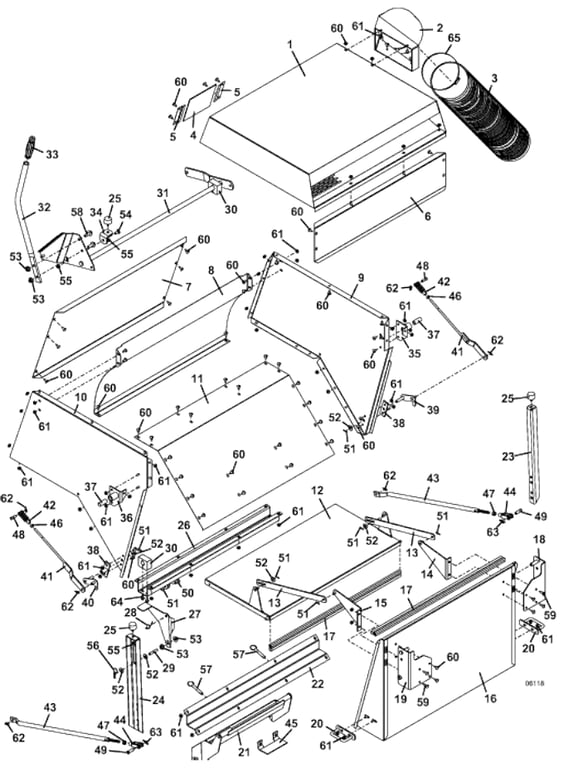

Model 12 Lever Action Hopper - Hopper & Mount Assembly 616T
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 643203 - Cover Mod12 | Call For Details | |
| 2 | 821005 - Vacuum Hose Inlet Adapter | Add To Cart | |
| 3 | 424408 - 57' Flex Hose | Add To Cart | |
| 4 | 423504 - Inspection Window | Add To Cart | |
| 5 | 720131 - Window Clip | Add To Cart | |
| 6 | 721269 - Back Panel Mod 12 | Add To Cart | |
| 7 | 721417 - Font Panel Mod 12 | Call For Details | |
| 8 | 854168 - Front Inside Panel Mod 12 | Call For Details | |
| 9 | 721480 - Side Panel Mod 12 | Add To Cart | |
| 10 | 721481 - Left Side Panel Mod 12 | Add To Cart | |
| 11 | 721414 - Bottom Panel Mod 12 | Add To Cart | |
| 12 | 643954 - Pivot Platform Mod 12 | Add To Cart | |
| 13 | 782566 - Linkage Strap Mod 12 | Call For Details | |
| 14 | 643067 - Right Arm Linkage | Call For Details | |
| 15 | 643068 - Left Arm Linkage | Call For Details | |
| 16 | 643279 - Door Mod 12 | Add To Cart | |
| 17 | 822502 - Door Seal Mod 12 | Add To Cart | |
| 18 | 643410 - Right Door Hinge | Add To Cart | |
| 19 | 643411 - Left Door Hinge | Add To Cart | |
| 20 | 643122 - Latch Bracket | Add To Cart | |
| 21 | 644534 - Rear Hopper Mount 12C/15B | Add To Cart | |
| 22 | 643250 - Hopper Mount Channel | Call For Details | |
| 23 | 729370 - Right Upright Hopper Mount 616T | Add To Cart | |
| 24 | 729371 - Left Upright Hopper Mount 600T | Add To Cart | |
| 25 | 424053 - Rubber Bumper | Add To Cart | |
| 26 | 643206 - Upper Channel | Call For Details | |
| 27 | 729152 - Latch Mod 12 | Add To Cart | |
| 28 | 284417 - Torsion Spring | Add To Cart | |
| 29 | 780386 - Latch Pin | Add To Cart | |
| 30 | 822305 - Pivot Bearing | Add To Cart | |
| 31 | 644565 - Lever Mount | Add To Cart | |
| 32 | 734075 - Hopper Handle | Add To Cart | |
| 33 | 422175 - Handle Grip | Add To Cart | |
| 34 | 732592 - Hopper Lever Stop | Add To Cart | |
| 35 | 643541 - Right Door Hinge Mount | Add To Cart | |
| 36 | 643542 - Left Door Hinge Mount | Add To Cart | |
| 37 | 422615 - Nylon Bearing | Add To Cart | |
| 38 | 643148 - Latch Pivot Bracket | Add To Cart | |
| 39 | 644155 - Right Door Latch | Add To Cart | |
| 40 | 644156 - Left Door Latch | Add To Cart | |
| 41 | 643453 - Latch Linkage Mod 12 | Add To Cart | |
| 42 | 265537 - Clevis Yoke | Add To Cart | |
| 43 | 644529 - Door Linkage Mod 12 | Add To Cart | |
| 44 | 265545 - Clevix Yoke | Add To Cart | |
| 45 | 900160 - Axle Beam Spacer | Add To Cart | |
| 46 | 254441 - Nut | Add To Cart | |
| 47 | 254452 - Nut | Add To Cart | |
| 48 | 261284 - Clevis Pin | Add To Cart | |
| 49 | 261346 - Clevis Pin | Add To Cart | |
| 50 | 261338 - Clevis Pin | Call For Details | |
| 51 | 260648 - Cotter Pin | Add To Cart | |
| 52 | 257030 - Washer | Add To Cart | |
| 53 | 253043 - Whiz Nut | Add To Cart | |
| 54 | 247130 - Carriage Bolt | Add To Cart | |
| 55 | 253035 - Whiz Nut | Add To Cart | |
| 56 | 260523 - Hair Pin | Add To Cart | |
| 57 | 260400 - Hitch Pin | Add To Cart | |
| 58 | 253203 - Flanged Whiz Bolt | Add To Cart | |
| 59 | 253177 - Truss Whiz Bolt | Add To Cart | |
| 60 | 253176 - Truss Whiz Bolt | Add To Cart | |
| 61 | 253025 - Whiz Nut | Add To Cart | |
| 62 | 260606 - Cotter Ring | Add To Cart | |
| 63 | 260608 - Cotter Ring | Add To Cart | |
| 64 | 243016 - Hex Bolt | Add To Cart | |
| 65 | 280345 - 6' Hose Clamp | Add To Cart | |
| 66 | 503211 - Lever Action Hopper mod12 616T | Call For Details |
