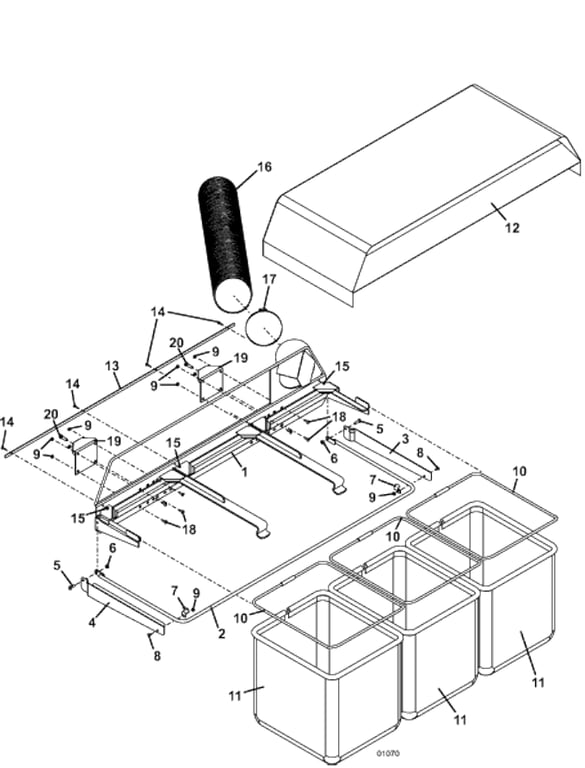

Model 12F Grasscatcher Collector Assembly - Model 12F Triple Bag (503193)
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,Call Toll-Free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 644299 - Triple Bag Frame | Call For Details | |
| 2 | 644709 - 3 Bag Top Hinge | Add To Cart | |
| 3 | 723365 - Right Cloth Top Shield | Add To Cart | |
| 4 | 723366 - Left Cloth Top Shield | Add To Cart | |
| 5 | 243205 - Hex Bolt | Add To Cart | |
| 6 | 253450 - Nylon Insert Nut | Add To Cart | |
| 7 | 180630 - Conduit Clip | Add To Cart | |
| 8 | 253176 - Truss Whiz Bolt | Add To Cart | |
| 9 | 253025 - Whiz Nut | Add To Cart | |
| 10 | 643723 - Twin Bag Rod | Add To Cart | |
| 11 | 420019 - Black Hard Bottom Vac Bag | Add To Cart | |
| - | 420004 - White 3 Bushel Hard Bottom Bag | Add To Cart | |
| 12 | 420037 - Black 3 Bag Fabric Catcher Top | Add To Cart | |
| - | 420036 - White 3 Bag Fabric Catcher Top | Add To Cart | |
| 13 | 782345 - 3 Bag Cover Hold Down Strap | Call For Details | |
| 14 | 253167 - Hex Whiz Bolt | Add To Cart | |
| 15 | 254421 - Nut | Add To Cart | |
| 16 | 424408 - 57' Flex Hose | Add To Cart | |
| 17 | 280345 - 6' Hose Clamp | Add To Cart | |
| 18 | 253177 - Turss Whiz Bolt | Add To Cart | |
| 19 | 643115 - Grasscatcher Top Bracket | Add To Cart | |
| 20 | 243335 - Hex Bolt | Add To Cart | |
| 21 | 503193 - 12F Collector (Not Pictured) | Call For Details |
