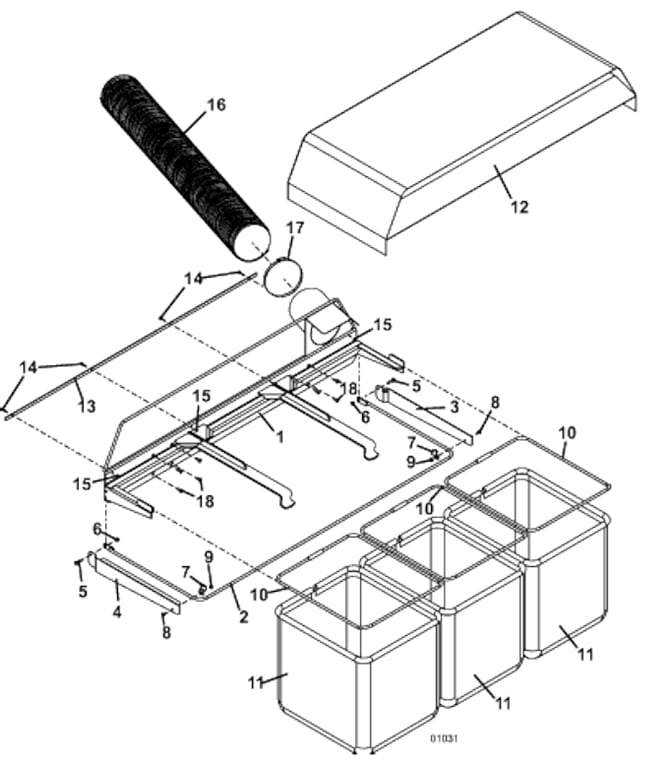

Model 12F Triple Bag Catcher503193 - 2004 and Older
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 644299 - Triple Bag Frame | Call For Details | |
| 2 | 644709 - 3 Bag Top Hinge | Add To Cart | |
| 3 | 723365 - Right Cloth Top Shield | Add To Cart | |
| 4 | 723366 - Left Cloth Top Shield | Add To Cart | |
| 5 | 243205 - Hex Bolt | Add To Cart | |
| 6 | 253450 - Nylon Insert Nut | Add To Cart | |
| 7 | 180630 - Conduit Clip | Add To Cart | |
| 8 | 253176 - Truss Whiz Bolt | Add To Cart | |
| 9 | 253025 - Whiz Nut | Add To Cart | |
| 10 | 643723 - Twin Bag Rod | Add To Cart | |
| 11 | 420003 - 3 Bushel Vacuum Bag | Add To Cart | |
| 12 | 420036 - Grasscatcher Fabric Top | Add To Cart | |
| 13 | 782345 - 3 Bag Hold Down Cover Strap | Call For Details | |
| 14 | 253167 - Hex Whiz Bolt | Add To Cart | |
| 15 | 254421 - Nut | Add To Cart | |
| 16 | 424408 - 57' Flex Hose | Add To Cart | |
| 17 | 280345 - 6' Hose Clamp | Add To Cart | |
| 18 | 253177 - Truss Whiz Bolt | Add To Cart | |
| 19 | 503193 - 12F Collector | Call For Details |
