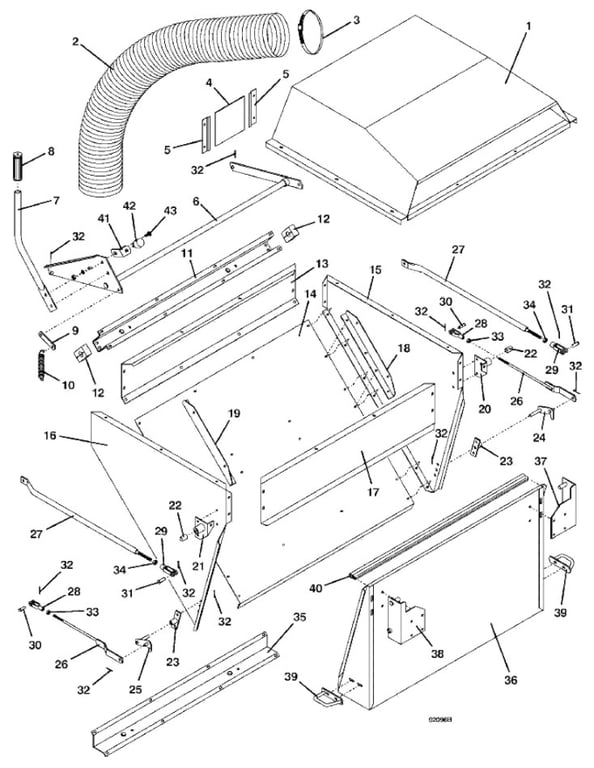

Model 15 Hopper - Model 15 Hopper Assembly
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 643807 - Hopper Top LA | Call For Details | |
| 2 | 424408 - 57' Flex Hose | Add To Cart | |
| 3 | 280345 - 6' Hose Clamp | Add To Cart | |
| 4 | 423505 - Inspection Window | Add To Cart | |
| 5 | 720145 - Window Clip | Add To Cart | |
| 6 | 643563 - Lever Actuated Door Handle Mount | Call For Details | |
| 7 | 734075 - Hopper Handle LA | Add To Cart | |
| 8 | 422175 - Handle Grip | Add To Cart | |
| 9 | 782508 - Spring Bracket | Add To Cart | |
| 10 | 283821 - Extension Spring | Add To Cart | |
| 11 | 643010 - Right Upper Offset Mount | Add To Cart | |
| 12 | 822305 - Pivot Bearing | Add To Cart | |
| 13 | 721336 - Front Panel | Call For Details | |
| 14 | 721745 - Bottom Panel | Add To Cart | |
| 15 | 721472 - Right Side Panel | Add To Cart | |
| 16 | 721473 - Left Side Panel | Add To Cart | |
| 17 | 721346 - Back Panel | Add To Cart | |
| 18 | 723086 - Right Hopper Reinforcement Model 15 | Add To Cart | |
| 19 | 723087 - Left Hopper Reinforcement Model 15 | Add To Cart | |
| 20 | 643541 - Right Door Hinge Mount | Add To Cart | |
| 21 | 643542 - Left Door Hinge Mount | Add To Cart | |
| 22 | 422615 - Nylon Bearing | Add To Cart | |
| 23 | 643148 - Latch Pivot Bracket | Add To Cart | |
| 24 | 644155 - Right Door Latch | Add To Cart | |
| 25 | 644156 - Left Door Latch | Add To Cart | |
| 26 | 643722 - Latch Linkage Rod | Add To Cart | |
| 27 | 643720 - Door Linkage Rod | Add To Cart | |
| 28 | 265537 - Clevis Yoke | Add To Cart | |
| 29 | 265545 - Clevis Yoke | Add To Cart | |
| 30 | 261284 - Clevis Pin | Add To Cart | |
| 31 | 261346 - Clevis Pin | Add To Cart | |
| 32 | 260648 - Cotter Pin | Add To Cart | |
| 33 | 254441 - Nut | Add To Cart | |
| 34 | 254452 - Nut | Add To Cart | |
| 35 | 643011 - Right Lower Offset Mount | Add To Cart | |
| 36 | 643282 - Hopper Door Model 15 LA | Add To Cart | |
| 37 | 643410 - Right Door Hinge | Add To Cart | |
| 38 | 643411 - Left Door Hinge | Add To Cart | |
| 39 | 643122 - Latch Bracket | Add To Cart | |
| 40 | 822505 - Hopper Door Seal | Add To Cart | |
| 41 | 732592 - Hopper Lever Stop | Add To Cart | |
| 42 | 424053 - Rubber Bumper | Add To Cart | |
| 43 | 247130 - Carriage Bolt | Add To Cart |
