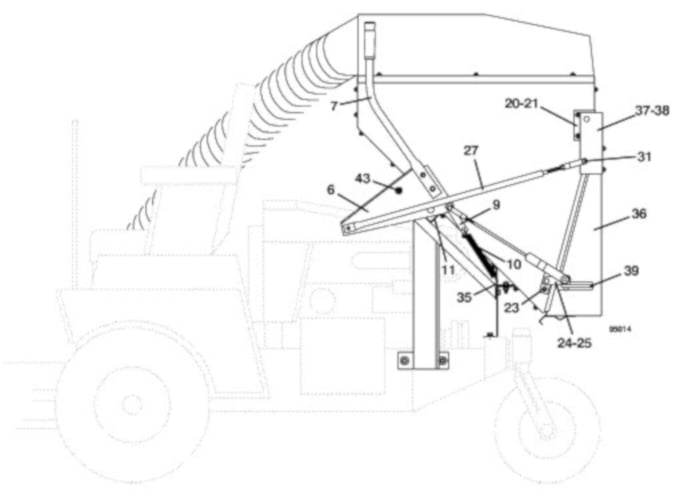

Model 15 Hopper - Model 15 Hopper Assembly - Side View
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 6 | 643563 - Lever Actuated Door Handle Mount | Call For Details | |
| 7 | 734075 - Hopper Handle | Add To Cart | |
| 9 | 782508 - Spring Bracket | Add To Cart | |
| 10 | 283821 - Extension Spring | Add To Cart | |
| 11 | 643010 - Right Upper Offset Mount | Add To Cart | |
| 20 | 643541 - Right Door Hinge Mount | Add To Cart | |
| 21 | 643542 - Left Door Hinge Mount | Add To Cart | |
| 23 | 643148 - Latch Pivot Bracket | Add To Cart | |
| 24 | 644155 - Right Door Latch | Add To Cart | |
| 25 | 644156 - Left Door Latch | Add To Cart | |
| 27 | 643720 - Door Linkage Rod | Add To Cart | |
| 31 | 261346 - Clevis Pin | Add To Cart | |
| 35 | 643011 - Right Lower Offset Mount | Add To Cart | |
| 36 | 643282 - Model 15 Hopper Door | Add To Cart | |
| 37 | 643410 - Right Door Hinge | Add To Cart | |
| 38 | 643411 - Left Door Hinge | Add To Cart | |
| 39 | 643122 - Latch Bracket | Add To Cart | |
| 43 | 247130 - Carriage Bolt | Add To Cart |
