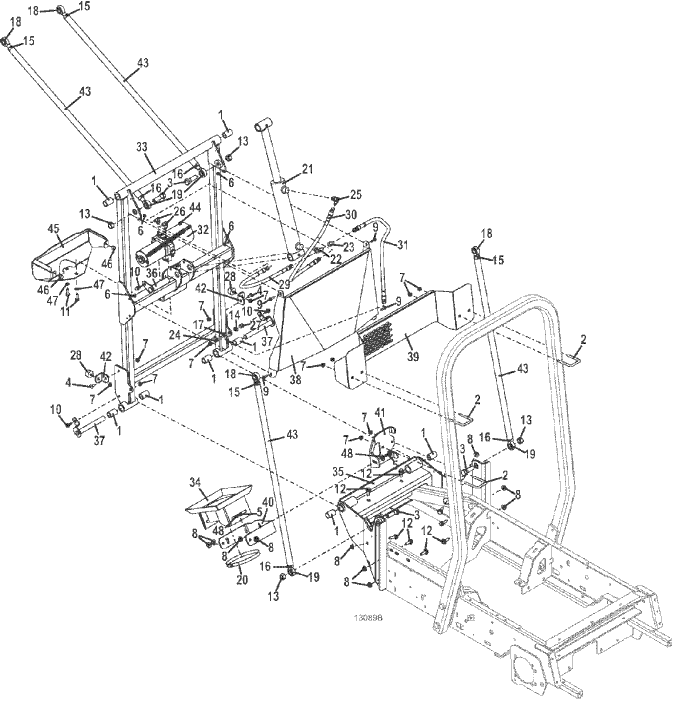

Model 15B HL Mount Kit - High Lift
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,Call Toll-Free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 121766 - Oilite Bearing | Add To Cart | |
| 2 | 240278 - Square U-Bolt | Call For Details | |
| 3 | 243810 - Hex Bolt | Add To Cart | |
| 4 | 247130 - Carriage Bolt | Add To Cart | |
| 5 | 247253 - Carriage Bolt | Add To Cart | |
| 6 | 253025 - Whiz Nut | Add To Cart | |
| 7 | 253035 - Whiz Nut | Add To Cart | |
| 8 | 253043 - Whiz Nut | Add To Cart | |
| 9 | 253175 - Hex Whiz Bolt | Add To Cart | |
| 10 | 253192 - Flanged Hex Whiz Bolt | Add To Cart | |
| 11 | 243330 - Hex Bolt | Add To Cart | |
| 12 | 253203 - Flanged Whiz Bolt | Add To Cart | |
| 13 | 253970 - Lock Nut | Add To Cart | |
| 14 | 254462 - Nut | Call For Details | |
| 15 | 254493 - Nut | Add To Cart | |
| 16 | 254496 - Left Handed Jam Nut | Call For Details | |
| 17 | 257040 - Washer | Add To Cart | |
| 18 | 265665 - Rod End | Add To Cart | |
| 19 | 265666 - Rod End | Call For Details | |
| 20 | 280345 - 6' Hose Clamp | Add To Cart | |
| 21 | 290030 - Hydraulic Cylinder | Add To Cart | |
| 22 | 360006 - T Branch Adapter | Call For Details | |
| 23 | 360011 - Adapter | Call For Details | |
| 24 | 360024 - Adapter | Call For Details | |
| 25 | 360048 - O-Ring Adapter | Call For Details | |
| 26 | 360049 - O-Ring Adapter | Call For Details | |
| 27 | 360516 - Female Cap | Call For Details | |
| 28 | 424056 - Bumper with Stud | Add To Cart | |
| 29 | 424308 - Hose Assembly | Add To Cart | |
| 30 | 424548 - Hose Assembly | Call For Details | |
| 31 | 424551 - Hose Assembly | Call For Details | |
| 32 | 604428 - Horizontal Hydraulic Pump Assembly | Add To Cart | |
| 33 | 645012 - Lower Arm | Call For Details | |
| 34 | 645108 - Lower Hose Coupler Bracket | Add To Cart | |
| 35 | 645548 - Mount | Call For Details | |
| 36 | 645680 - Pin | Call For Details | |
| 37 | 645681 - Pin | Call For Details | |
| 38 | 722356 - Shield | Call For Details | |
| - | 163294 - Medium Grasshopper Emblem Decal | Add To Cart | |
| 39 | 722357 - Shield | Call For Details | |
| 40 | 725694 - Hose Coupler Pivot Bracket | Add To Cart | |
| 41 | 726313 - Hose Coupler Mount Bracket | Call For Details | |
| 42 | 732592 - Hopper Lever Stop | Add To Cart | |
| 43 | 882036 - Rod | Call For Details | |
| 44 | 365505 - Vent Plug | Call For Details | |
| - | 365502 - Plug | Call For Details | |
| 45 | 729744 - Hydraulic Pump Shield | Call For Details | |
| 46 | 424015 - Rubber Bumper | Add To Cart | |
| 47 | 257412 - Lock Washer | Add To Cart | |
| 48 | 257062 - Washer | Add To Cart | |
| 49 | 503555 - Model 15B High Lift Mount Kit for 700 / 900 Series | Call For Details |
