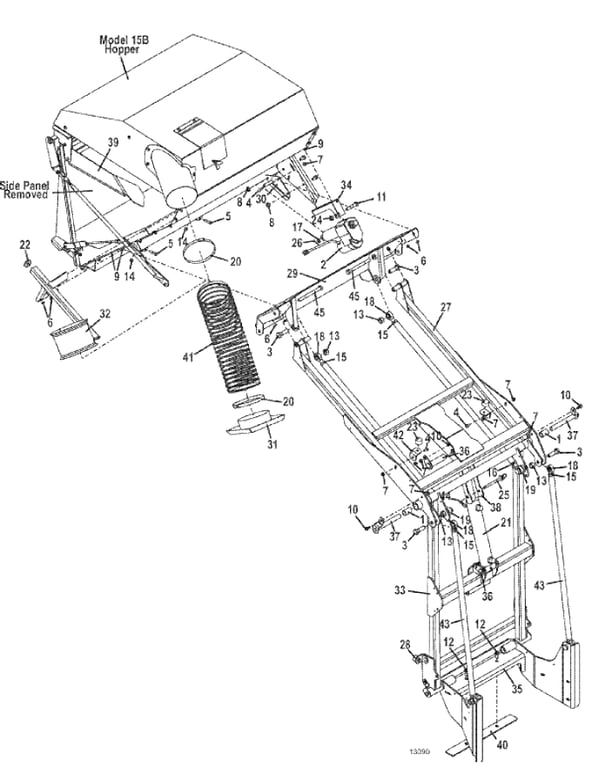

Model 15B HL Mount Kit - High Lift Continued
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,Call Toll-Free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 121766 - Oilite Bearing | Add To Cart | |
| 2 | 180023 - Actuator | Add To Cart | |
| 3 | 243810 - Hex Bolt | Add To Cart | |
| 4 | 247130 - Carrage Bolt | Add To Cart | |
| 5 | 243215 - Hex Bolt | Add To Cart | |
| 6 | 253025 - Whiz Nut | Add To Cart | |
| 7 | 253035 - Whiz Nut | Add To Cart | |
| 8 | 253043 - Whiz Nut | Add To Cart | |
| 9 | 253177 - Truss Whiz Bolt | Add To Cart | |
| 10 | 253192 - Flanged Hex Whiz Bolt | Add To Cart | |
| 11 | 243585 - Hex Bolt | Add To Cart | |
| 12 | 253203 - Flanged Whiz Bolt | Add To Cart | |
| 13 | 253970 - Lock Nut | Add To Cart | |
| 14 | 253450 - Nylon Insert Nut | Add To Cart | |
| 15 | 254493 - Nut | Add To Cart | |
| 16 | 254496 - Left Handed Jam Nut | Call For Details | |
| 17 | 257062 - Washer | Add To Cart | |
| 18 | 265665 - Rod End | Add To Cart | |
| 19 | 265666 - Rod End | Call For Details | |
| 20 | 280345 - 6' Hose Clamp | Add To Cart | |
| 21 | 290030 - Hydraulic Cylinder | Add To Cart | |
| 22 | 422065 - Square Plastic Plug (1' diameter) | Add To Cart | |
| 23 | 424053 - Rubber Bumper | Add To Cart | |
| 24 | 253930 - Lock Nut | Add To Cart | |
| 25 | 260412 - Hitch Pin | Call For Details | |
| 26 | 260652 - Cotter Pin | Add To Cart | |
| 27 | 645013 - Upper Arm | Call For Details | |
| 28 | 424056 - Bumper with Stud | Add To Cart | |
| 29 | 645106 - Bracket | Add To Cart | |
| 30 | 645107 - Bracket | Call For Details | |
| 31 | 645109 - Upper Hose Coupler Bracket | Add To Cart | |
| 32 | 645110 - Hose Guide Bracket | Add To Cart | |
| 33 | 645012 - Lower Arm | Call For Details | |
| 34 | 645547 - Mount | Add To Cart | |
| 35 | 645548 - Mount | Call For Details | |
| 36 | 645680 - Pin | Call For Details | |
| 37 | 645681 - Pin | Call For Details | |
| 38 | 725693 - Cylinder Lockout Bracket | Call For Details | |
| 39 | 766046 - Right Arm | Call For Details | |
| - | 766047 - Left Arm | Call For Details | |
| 40 | 775136 - Hopper Lift Mount Spacer Plate | Call For Details | |
| 41 | 833505 - Hose | Add To Cart | |
| 42 | 732592 - Hopper Lever Stop | Add To Cart | |
| 43 | 882036 - Rod | Call For Details | |
| 44 | 260523 - Hair Pin | Add To Cart | |
| - | 423190 - 6' Nylon Lanyard | Call For Details | |
| 45 | 243630 - Hex Bolt | Add To Cart | |
| 46 | 503555 - 15B High Lift Hopper Mount Kit 700 / 900 Series | Call For Details |
