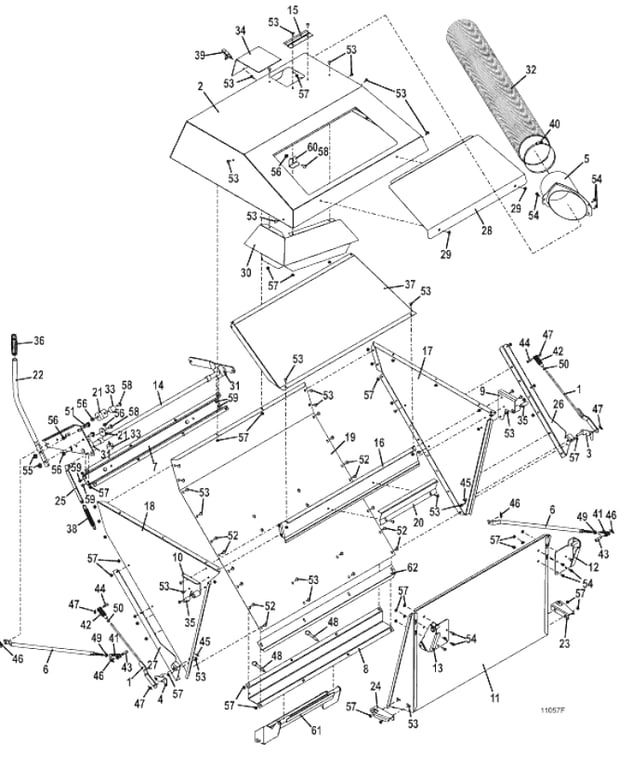

Model 15B Hopper - Model 15B Hopper Assembly
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 643722 - Linkage Latch Rod | Add To Cart | |
| 2 | 643910 - Hopper Top W\ Top 15B | Add To Cart | |
| 3 | 644155 - Right Door Latch | Add To Cart | |
| 4 | 644156 - Left Door Latch | Add To Cart | |
| 5 | 644372 - Inlet Tube Mod 16 | Add To Cart | |
| 6 | 644458 - Door Linkage Mod 16 | Add To Cart | |
| 7 | 645011 - Upper Crossmember 15B | Call For Details | |
| 8 | 645203 - Lower Channel Mount 15B | Call For Details | |
| 9 | 645260 - Right Hinge Mount | Add To Cart | |
| 10 | 645261 - Left Hinge Mount | Add To Cart | |
| 11 | 645285 - Hopper Door Mod15B | Call For Details | |
| 12 | 645410 - Right Door Hinge | Add To Cart | |
| 13 | 645411 - Left Door Hinge | Add To Cart | |
| 14 | 645571 - Door Mount 15B | Add To Cart | |
| 15 | 720145 - Window Clip | Add To Cart | |
| 16 | 721357 - Bridge Stop Panel | Call For Details | |
| 17 | 721460 - Right Side Panel 15B | Call For Details | |
| 18 | 721461 - Left Side Panel 15B | Call For Details | |
| 19 | 721746 - Panel Bottom 15B | Call For Details | |
| 20 | 723081 - Screen Clamp | Call For Details | |
| 21 | 732592 - Hopper Lever Stop | Add To Cart | |
| 22 | 734075 - Hopper Handle | Add To Cart | |
| 23 | 754351 - Right Door Latch Bracket 15B | Add To Cart | |
| 24 | 754352 - Left Door Latch Bracket 15B | Add To Cart | |
| 25 | 755129 - Spring Strap 700/900 | Add To Cart | |
| 26 | 766260 - Right Hopper Side Reinforcement 15B | Call For Details | |
| 27 | 766261 - Left Hopper Side Reinforcement 15B | Add To Cart | |
| 28 | 721344 - Door Panel 15B | Add To Cart | |
| 29 | 253180 - Bolt | Add To Cart | |
| 30 | 721187 - Inlet Baffle Mod16 | Call For Details | |
| 31 | 822305 - Pivot Bearing | Add To Cart | |
| 32 | 424410 - 62' Flex Hose | Add To Cart | |
| 33 | 424053 - Rubber Bumper | Add To Cart | |
| 34 | 423510 - Inspection Window | Add To Cart | |
| 35 | 422615 - Nylon Bearing | Add To Cart | |
| 36 | 422175 - Handle Grip | Add To Cart | |
| 37 | 721458 - Top Screen 15B | Add To Cart | |
| 38 | 283821 - Extension Spring | Add To Cart | |
| 39 | 281305 - Swell Action Latch | Add To Cart | |
| 40 | 280345 - 6' Hose Clamp | Add To Cart | |
| 41 | 265545 - Clevis Yoke | Add To Cart | |
| 42 | 265537 - Clevis Yoke | Add To Cart | |
| 43 | 261346 - Clevis Pin | Add To Cart | |
| 44 | 261284 - Clevis Pin | Add To Cart | |
| 45 | 260648 - Cotter Pin | Add To Cart | |
| 46 | 260608 - Cotter Ring | Add To Cart | |
| 47 | 260606 - Cotter Ring | Add To Cart | |
| 48 | 260400 - Hitch Pin | Add To Cart | |
| 49 | 254452 - Nut | Add To Cart | |
| 50 | 254441 - Nut | Add To Cart | |
| 51 | 253203 - Flanged Whiz Bolt | Add To Cart | |
| 52 | 253177 - Truss Whiz Bolt | Add To Cart | |
| 53 | 253176 - Truss Whiz Bolt | Add To Cart | |
| 54 | 253173 - Hex Whiz Bolt | Add To Cart | |
| 55 | 253043 - Whiz Nut | Add To Cart | |
| 56 | 253035 - Whiz Nut | Add To Cart | |
| 57 | 253025 - Whiz Nut | Add To Cart | |
| 58 | 247130 - Carriage Bolt | Add To Cart | |
| 59 | 243016 - Hex Bolt | Add To Cart | |
| 60 | 723022 - Hopper Screen Clamp | Add To Cart | |
| 61 | 644534 - Rear Hopper Mount 12C/15B | Add To Cart | |
| 62 | 721749 - Bottom Adjust Panel 15B | Call For Details |
