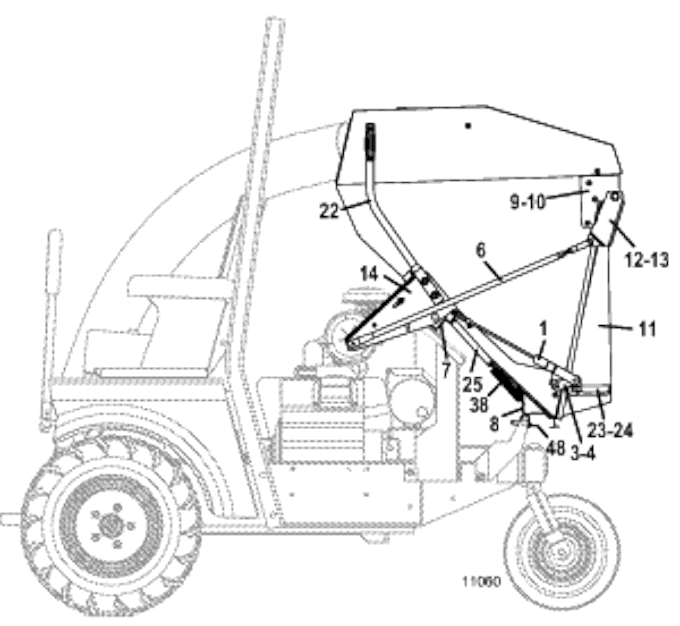

Model 15B Hopper - Model 15B Hopper Assembly - Side View
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 643722 - Linkage Latch Rod | Add To Cart | |
| 3 | 644155 - Right Door Latch | Add To Cart | |
| 4 | 644156 - Left Door Latch | Add To Cart | |
| 6 | 644458 - Door Linkage Mod 16 | Add To Cart | |
| 7 | 645011 - Upper Crossmember 15B | Call For Details | |
| 8 | 645203 - Lower Channel Mount 15B | Call For Details | |
| 9 | 645260 - Right Hinge Mount | Add To Cart | |
| 10 | 645261 - Left Hinge Mount | Add To Cart | |
| 11 | 645285 - Hopper Door 15B | Call For Details | |
| 12 | 645410 - Right Door Hinge | Add To Cart | |
| 13 | 645411 - Left Door Hinge | Add To Cart | |
| 14 | 645571 - Door Mount 15B | Add To Cart | |
| 22 | 734075 - Hopper Handle LA | Add To Cart | |
| 23 | 754351 - Right Door Latch Bracket Model 15 | Add To Cart | |
| 24 | 754352 - Left Door Latch Bracket Model 15 | Add To Cart | |
| 25 | 755129 - Spring Strap 700/900 | Add To Cart | |
| 38 | 283821 - Extension Spring | Add To Cart | |
| 48 | 260400 - Hitch Pin | Add To Cart | |
| 49 | 503190 - 15B Collector Assembly W/O Mount | Add To Cart |
