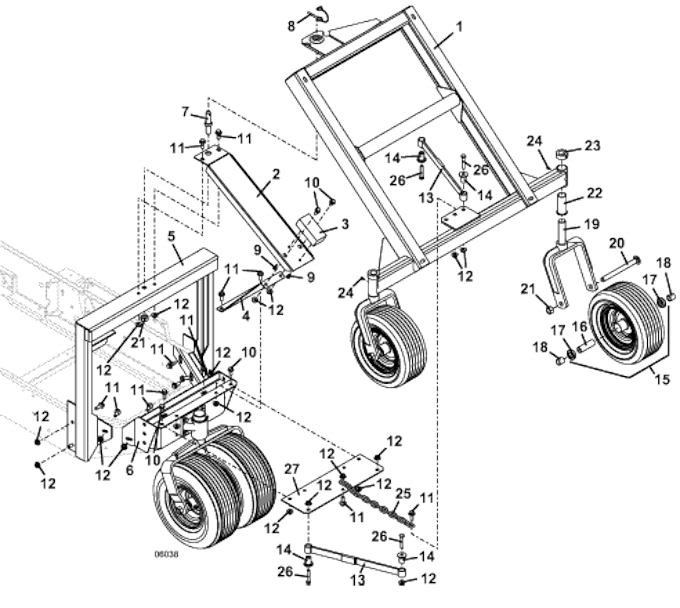

Model 25 Lever Action Mount Kit - Trailer Assembly (2006 & Newer)
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,Call Toll-Free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 643823 - Model 25 Trailer | Call For Details | |
| 2 | 729512 - Block Mount Channel | Call For Details | |
| 3 | 822308 - Model 25 Stop Block | Call For Details | |
| 4 | 729527 - Channel Support Bracket | Call For Details | |
| 5 | 644722 - Fifth Wheel Hitch | Call For Details | |
| 6 | 643915 - Weight Mount | Add To Cart | |
| 7 | 261660 - Link Pin | Call For Details | |
| 8 | 261624 - Linch Pin | Add To Cart | |
| 9 | 243016 - Hex Bolt | Add To Cart | |
| 10 | 253200 - Whiz Bolt | Add To Cart | |
| 11 | 253203 - Flanged Whiz Bolt | Add To Cart | |
| 12 | 253043 - Whiz Nut | Add To Cart | |
| 13 | 420105 - Model 25 Retainer Strap | Call For Details | |
| 14 | 883104 - Retainer Strap Spool | Call For Details | |
| 15 | 483861 - Wheel & Tire (with Bearings & Spacer) | Add To Cart | |
| - | 482350 - Tubeless Ribbed Tire | Add To Cart | |
| - | 483301 - Wheel (with Bearing & Spacer) | Add To Cart | |
| 16 | 902475 - Rear Wheel Bearing Spacer | Add To Cart | |
| 17 | 120050 - Ball Bearing | Add To Cart | |
| 18 | 902425 - Axle Spacer | Add To Cart | |
| 19 | 643367 - Rear Fork | Add To Cart | |
| 20 | 247726 - Carriage Bolt | Add To Cart | |
| 21 | 253970 - Lock Nut | Add To Cart | |
| 22 | 833260 - Flanged Sintered Bushing | Add To Cart | |
| 23 | 280440 - Collar Set | Add To Cart | |
| 24 | 280776 - Grease Fitting (Zerk) | Add To Cart | |
| 25 | 820328 - Safety Chain | Call For Details | |
| 26 | 243347 - Hex Bolt | Add To Cart | |
| 27 | 774287 - Trailer Stop Plate | Call For Details |
