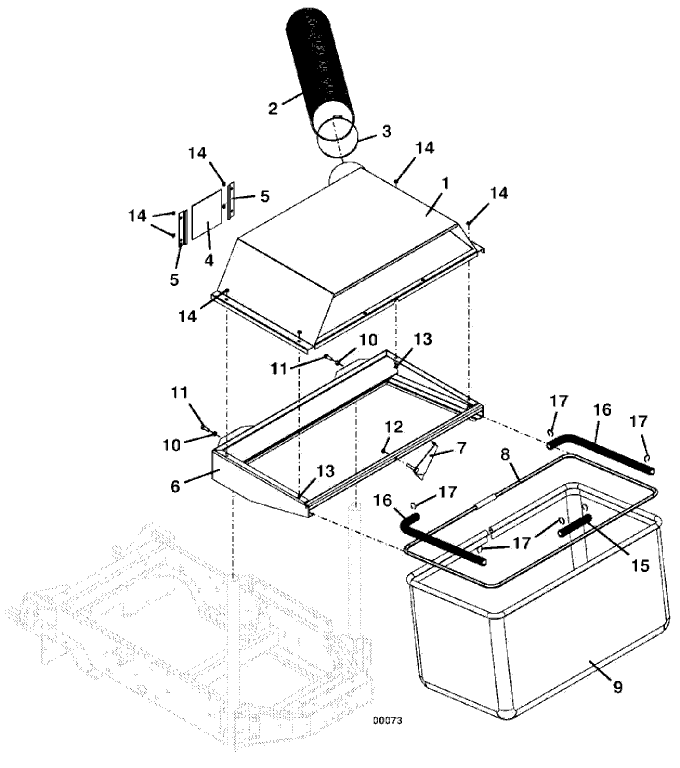

Model 8 Grasscatcher Collector Assembly - Model 8 Single Bag (Formerly Model 7)
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,Call Toll-Free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 643240 - Grass Catcher Cover | Call For Details | |
| 2 | 424408 - 57' Flex Hose | Add To Cart | |
| 3 | 280345 - 6' Hose Clamp | Add To Cart | |
| 4 | 423505 - Inspection Window | Add To Cart | |
| 5 | 720145 - Window Clip | Add To Cart | |
| 6 | 643372 - Bag Mount Frame | Call For Details | |
| 7 | 643510 - Bag Latch | Call For Details | |
| 8 | 643718 - Bag Rod | Call For Details | |
| 9 | 603390 - Grasscatcher Bag Kit(includes items 9,15,16, &17) | Call For Details | |
| 10 | 254450 - Nut | Add To Cart | |
| 11 | 243330 - Hex Bolt | Add To Cart | |
| 12 | 253450 - Nylon Insert Nut | Add To Cart | |
| 13 | 253176 - Truss Whiz Bolt | Add To Cart | |
| 14 | 253025 - Whiz Nut | Add To Cart | |
| 15 | 822532 - Bag Latch Wear Strip | Call For Details | |
| 16 | 822542 - Vac Bag Wear Strip | Call For Details | |
| 17 | 263532 - External Retainer Clip | Call For Details | |
| 18 | 643240 - Catcher Without Mount - Model 7 (Not Pictured) | Call For Details |
