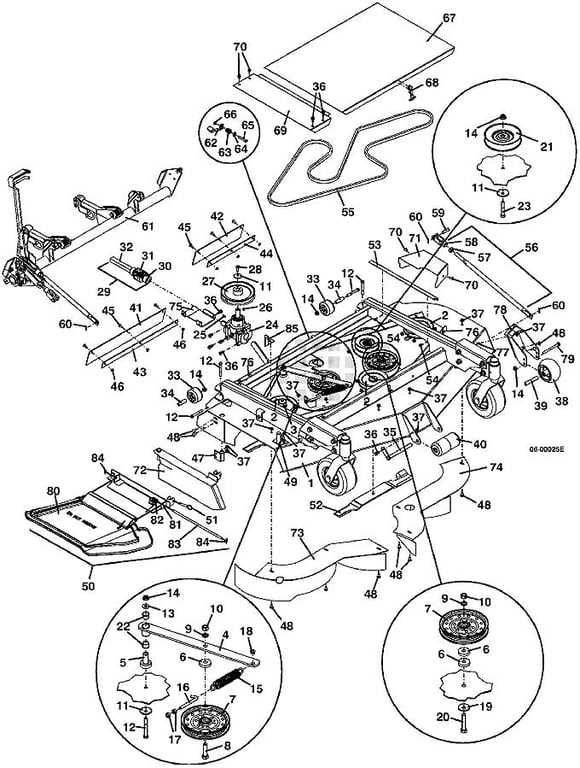

Mower Assembly Grasshopper 9861 Deck - 2003
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart, call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 644000 - 9861 Mower Deck Weldment | Call For Details | |
| 2 | 415892 - Sheave | Add To Cart | |
| 3 | 282630 - Spacer | Add To Cart | |
| 4 | 824487 - 9861 F/A Idler Arm | Add To Cart | |
| 5 | 121650 - Pedestal Bearing | Add To Cart | |
| 6 | 883804 - Washer | Add To Cart | |
| 7 | 393250 - Idler | Add To Cart | |
| 8 | 243580 - Hex Bolt | Add To Cart | |
| 9 | 257432 - Lock Washer | Add To Cart | |
| 10 | 254470 - Nut | Add To Cart | |
| 11 | 257041 - Cupped Washer | Add To Cart | |
| 12 | 243365 - Hex Bolt | Add To Cart | |
| 13 | 257040 - Washer | Add To Cart | |
| 14 | 253043 - Whiz Nut | Add To Cart | |
| 15 | 283848 - Extension Spring | Add To Cart | |
| 16 | 730391 - Idler Adjustment J Bolt | Add To Cart | |
| 17 | 254450 - Nut | Add To Cart | |
| 18 | 422520 - Nylon Bearing | Add To Cart | |
| 19 | 257059 - Washer | Add To Cart | |
| 20 | 243590 - Hex Bolt | Add To Cart | |
| 21 | 393376 - Idler | Add To Cart | |
| 22 | 121756 - Oilite Bearing | Add To Cart | |
| 23 | 243350 - Hex Bolt | Add To Cart | |
| 24 | 390022 - Right Angle CCW HD Gearbox | Add To Cart | |
| 25 | 281833 - Woodruff Key | Add To Cart | |
| 26 | 281828 - Woodruff Key | Add To Cart | |
| 27 | 415893 - Sheave | Add To Cart | |
| 28 | 243331 - Hex Bolt | Add To Cart | |
| 29 | 398528 - UN Half Shaft | Add To Cart | |
| 30 | 401010 - Yoke | Add To Cart | |
| 31 | 121010 - Cross & Bearing | Add To Cart | |
| 32 | 402608 - Yoke & Shaft | Add To Cart | |
| 33 | 426122 - Roller | Add To Cart | |
| 34 | 902284 - Roller Mount Spacer | Add To Cart | |
| 35 | 644512 - Roller Lock Pin | Add To Cart | |
| 36 | 253192 - Hex Flange Whiz Bolt | Add To Cart | |
| 37 | 253035 - Whiz Nut | Add To Cart | |
| 38 | 484230 - Anti Scalp Wheel | Add To Cart | |
| 39 | 942137 - Bearing Tube | Add To Cart | |
| 40 | 603725 - 2 Piece Center Roller Assembly | Add To Cart | |
| 41 | 424207 - Deck Flap - right | Add To Cart | |
| 42 | 424208 - Deck Flap - left | Add To Cart | |
| 43 | 774280 - M1 9861 right Deflector Strap | Add To Cart | |
| 44 | 774133 - 9861 left Deflector Strap | Add To Cart | |
| 45 | 253177 - Truss Whiz Bolt | Add To Cart | |
| 46 | 253025 - Whiz Nut | Add To Cart | |
| 47 | 643632 - Vac Housing Pivot Mount | Add To Cart | |
| 48 | 247130 - Carriage Bolt | Add To Cart | |
| 49 | 643235 - Clevis Shaft | Add To Cart | |
| 50 | 604749 - Discharge Shield Flex Assembly | Add To Cart | |
| 51 | 260400 - Hitch Pin | Add To Cart | |
| 52 | 320245 - Blade - 21 Inch - Notched Hi-Lift (3 required) | Call For Details | |
| - | 320242 - Blade - 21 Inch - Medium Lift (3 required) | Call For Details | |
| - | 320244 - Blade - 21 Inch - Contour (3 required) | Call For Details | |
| - | 320246 - Blade - 21 Inch -Extreme Hi-Lift (3 required) | Call For Details | |
| 53 | 722156 - 9861 Angle Shield Support | Call For Details | |
| 54 | 243016 - Hex Bolt | Add To Cart | |
| 55 | 382090 - Belt | Add To Cart | |
| 56 | 603594 - 9861 Deck Linkage Assembly - left | Add To Cart | |
| 57 | 254493 - Nut | Add To Cart | |
| 58 | 265565 - Clevis Yoke | Add To Cart | |
| 59 | 261426 - Clevis Pin | Add To Cart | |
| 60 | 260650 - Cotter Pin | Add To Cart | |
| 61 | 604562 - Lift Arm Assembly | Call For Details | |
| 62 | 732879 - 98S Slip Yoke Clamp | Call For Details | |
| 63 | 283324 - Compression Spring | Add To Cart | |
| 64 | 257030 - Washer | Add To Cart | |
| 65 | 243225 - Hex Bolt | Add To Cart | |
| 66 | 253450 - Nut w/Nylon Insert | Add To Cart | |
| 67 | 604758 - Shield Assembly | Add To Cart | |
| 68 | 281301 - Rubber Draw Latch | Add To Cart | |
| 69 | 722353 - Belt Shield - right | Add To Cart | |
| 70 | 253173 - Hex Whiz Bolt | Add To Cart | |
| 71 | 722329 - Belt Shield - left | Add To Cart | |
| 72 | 644224 - M1 Mulch End Cap | Add To Cart | |
| 73 | 644611 - Mulch Plate - right | Add To Cart | |
| 74 | 644610 - Mulch Plate - left | Add To Cart | |
| 75 | 754077 - U-Joint Shield | Add To Cart | |
| 76 | 254431 - Speed Nut | Add To Cart | |
| 77 | 253192 - Hex Flange Whiz Bolt | Add To Cart | |
| 78 | 643695 - Anti Scalp Roller Mount - left | Add To Cart | |
| 79 | 247310 - Carriage Bolt | Add To Cart | |
| 80 | 422042 - Flex Discharge Shield | Add To Cart | |
| 81 | 644767 - Flex Discharge Shield Mount | Add To Cart | |
| 82 | 284406 - Torsion Spring | Add To Cart | |
| 83 | 780650 - Flex Discharge Shield Pin | Add To Cart | |
| 84 | 260608 - Cotter Ring | Add To Cart | |
| 85 | 729003 - Belt Guide | Call For Details | |
| - | 603282 - Mower Safety Decal Set | Add To Cart |
