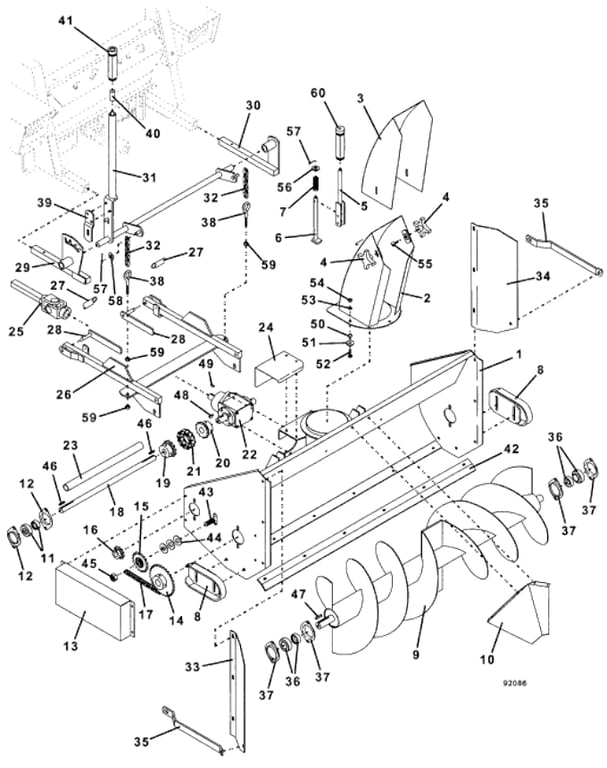

Pin Style Mount Snowthrower
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 643041 - Snowthrower Housing | Call For Details | |
| 2 | 643788 - Upper Spout | Call For Details | |
| 3 | 643277 - Spout Deflector | Add To Cart | |
| 4 | 252860 - Thumb Screw | Add To Cart | |
| 5 | 643408 - Spout Handle | Add To Cart | |
| 6 | 643728 - Spout Lock Rod | Call For Details | |
| 7 | 283320 - Compression Spring | Add To Cart | |
| 8 | 643786 - 4.0 Skid | Add To Cart | |
| 9 | 643089 - Snowthrower Auger with 1 inch Shaft | Add To Cart | |
| 10 | 721150 - Snow Deflector | Add To Cart | |
| 11 | 120062 - Ball Bearing with Lock Collar | Add To Cart | |
| 12 | 124510 - 2 Bolt Flangette | Add To Cart | |
| 13 | 722382 - Snowthrower Chain Shield | Call For Details | |
| 14 | 417549 - Sprocket | Add To Cart | |
| 15 | 392995 - Idler | Add To Cart | |
| 16 | 417509 - Sprocket | Add To Cart | |
| 17 | 385260 - #40 Chain | Add To Cart | |
| 18 | 881455 - Power Shaft | Add To Cart | |
| 19 | 418420 - Sprocket Coupler | Add To Cart | |
| 20 | 418422 - Sprocket Coupler | Add To Cart | |
| 21 | 388300 - Chain Coupler | Add To Cart | |
| 22 | 390220 - T Gearbox | Add To Cart | |
| 23 | 822570 - Shaft Shield | Add To Cart | |
| 24 | 721069 - Shaft Coupling Shield | Add To Cart | |
| 25 | 398515 - UN Half Shaft | Add To Cart | |
| - | 121010 - Cross & Bearing | Add To Cart | |
| - | 401010 - Yoke | Add To Cart | |
| - | 402604 - Yoke & Shaft | Add To Cart | |
| 26 | 643616 - Snowthrower Mount Assembly | Call For Details | |
| 27 | 261848 - Safety Pin | Add To Cart | |
| 28 | 643625 - Attaching Pin | Add To Cart | |
| 29 | 643567 - Lever Mount | Add To Cart | |
| 30 | 643570 - Left Lift Mount | Add To Cart | |
| 31 | 604514 - Dozer/Snowthrower Lift Lever Assembly | Add To Cart | |
| 32 | 820320 - Snowthrower Chain Lift | Add To Cart | |
| 33 | 724292 - Right Side Extension | Add To Cart | |
| 34 | 724293 - Left Side Extension | Add To Cart | |
| 35 | 732909 - Extension Brace | Add To Cart | |
| 36 | 120083 - Ball Bearing with Lock Collar | Add To Cart | |
| 37 | 124520 - 2 Bolt Flangette | Add To Cart | |
| 38 | 240058 - Eye Bolt | Add To Cart | |
| 39 | 732593 - Lever Guide | Add To Cart | |
| 40 | 821675 - Push Rod Thumb Button | Add To Cart | |
| 41 | 833540 - Thumb Release Handle Grip | Add To Cart | |
| 42 | 724243 - Snowthrower Blade | Add To Cart | |
| - | 247130 - Carriage Bolt | Add To Cart | |
| - | 253035 - Whiz Nut | Add To Cart | |
| 43 | 243810 - Hex Bolt | Add To Cart | |
| 44 | 257080 - Washer | Add To Cart | |
| 45 | 253970 - Lock Nut | Add To Cart | |
| 46 | 281560 - Square Key | Add To Cart | |
| 47 | 281586 - Square Key | Add To Cart | |
| 48 | 281833 - Woodruff Key | Add To Cart | |
| 49 | 281828 - Woodruff Key | Add To Cart | |
| 50 | 903215 - Spout Pivot Spacer | Add To Cart | |
| 51 | 774015 - Retainer Washer | Add To Cart | |
| 52 | 243205 - Hex Bolt | Add To Cart | |
| 53 | 257402 - Lock Washer | Add To Cart | |
| 54 | 254440 - Nut | Add To Cart | |
| 55 | 247130 - Carriage Bolt | Add To Cart | |
| 56 | 257062 - Washer | Add To Cart | |
| 57 | 260652 - Cotter Pin | Add To Cart | |
| 58 | 257040 - Washer | Add To Cart | |
| 59 | 254450 - Nut | Add To Cart | |
| 60 | 422160 - Handle Grip | Add To Cart |
