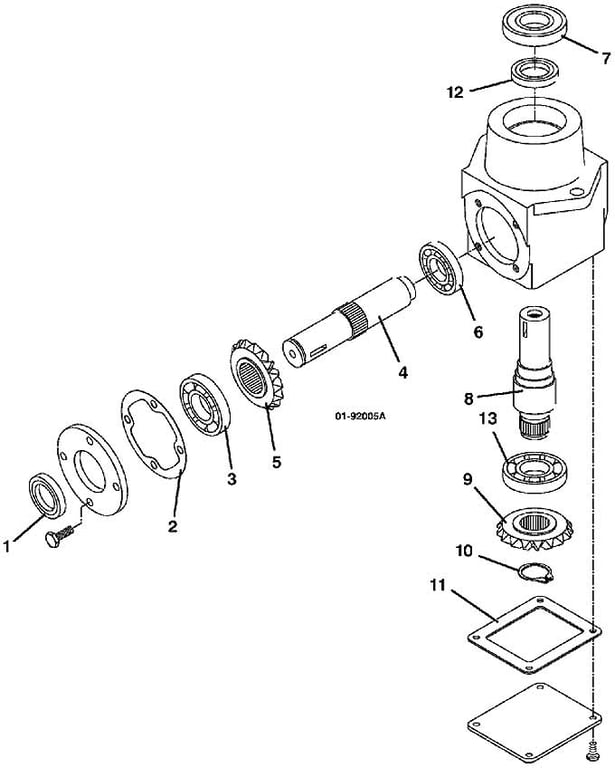

Right Angle Gearbox Assembly Grasshopper 9861 Deck - 2003
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart, call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 125336 - Seal | Add To Cart | |
| 2 | 420201 - Gearbox Cap Gasket | Add To Cart | |
| 3 | 120071 - Ball Bearing | Add To Cart | |
| 4 | 393517 - 1.000 Shaft | Add To Cart | |
| 5 | 392501 - 8 Pitch .995 Bevel Gear | Add To Cart | |
| 6 | 120065 - Ball Bearing | Add To Cart | |
| 7 | 110080 - 25mm 2 Metal Seal Ball Bearing | Add To Cart | |
| 8 | 393512 - .875 Shaft used with Gearbox part number 1000-067A | Call For Details | |
| - | 393514 - .875 Shaft used with Gearbox part number 1000-067 | Call For Details | |
| 9 | 392500 - 8 Pitch .865 Bevel Gear | Add To Cart | |
| 10 | 263540 - External Retainer | Add To Cart | |
| 11 | 420200 - Gearbox Cover Gasket | Add To Cart | |
| 12 | 125345 - Oil Seal | Add To Cart | |
| 13 | 120072 - Ball Bearing used with Gearbox part number 1000-067A | Add To Cart | |
| - | 120071 - Ball Bearing used with Gearbox part number 1000-067 | Add To Cart | |
| 14 | 390024 - Right Angle Counter-Clockwise Gearbox | Add To Cart |
