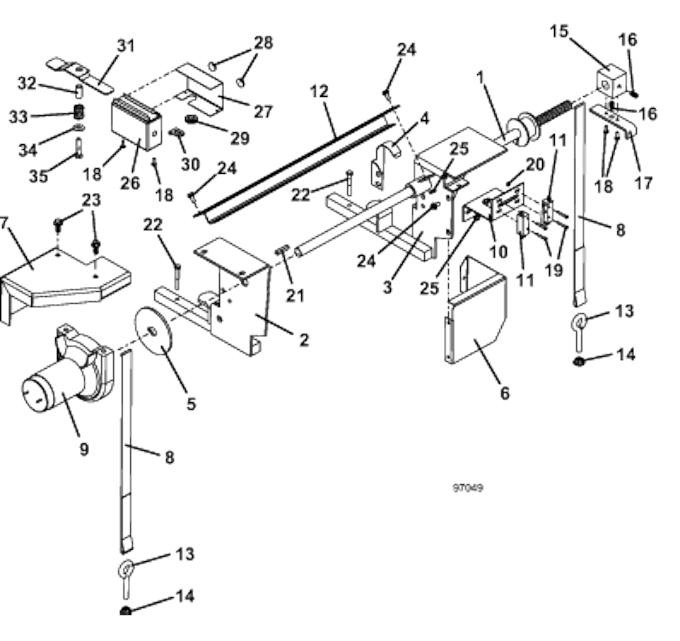

Strap Lift Electric Lift Assembly - 2007 and Older
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 644515 - Aerator Acme THD Lift Shaft | Add To Cart | |
| 2 | 644563 - Right Extended Lift Linkage Mount | Call For Details | |
| 3 | 644564 - Extended Lift Linkage Mount | Call For Details | |
| 4 | 722063 - Strap Lift Guard | Call For Details | |
| 5 | 775084 - Belt Guide Disk | Add To Cart | |
| 6 | 721121 - Switch Cover | Call For Details | |
| 7 | 729294 - Aerator Relay Mount | Call For Details | |
| 8 | 420110 - Lift Strap 18.625 ' | Add To Cart | |
| 9 | 604515 - Lift Drive Assembly | Call For Details | |
| 10 | 724039 - Aerator Switch Bracket | Call For Details | |
| 11 | 183855 - Switch Lever | Add To Cart | |
| 12 | 724043 - Aerator Conduit Channel | Call For Details | |
| 13 | 240058 - Eye Bolt | Add To Cart | |
| 14 | 253043 - Whiz Nut | Add To Cart | |
| 15 | 822317 - Aerator Switch Block | Call For Details | |
| 16 | 830340 - Lead Screw Guide | Call For Details | |
| 17 | 782783 - Aerator Activator Strap | Call For Details | |
| 18 | 250169 - Hex Machine Screw | Add To Cart | |
| 19 | 250318 - Machine Screw | Call For Details | |
| - | 257372 - Lock Washer | Call For Details | |
| 20 | 254400 - Nut | Call For Details | |
| 21 | 281583 - Square Key | Add To Cart | |
| 22 | 243040 - Hex Bolt | Add To Cart | |
| 23 | 253192 - Hex Flanged Whiz Bolt | Add To Cart | |
| 24 | 253173 - Hex Whiz Bolt | Add To Cart | |
| 25 | 253025 - Whiz Nut | Add To Cart | |
| 26 | 644772 - Accessories Switch Box | Call For Details | |
| 27 | 721140 - Switch Box Cover Panel | Call For Details | |
| 28 | 424029 - Rubber Bumper | Add To Cart | |
| 29 | 424216 - Grommet | Add To Cart | |
| 30 | 722009 - Throttle Lever Stop | Add To Cart | |
| 31 | 754005 - Switch Box Mount Strap | Add To Cart | |
| 32 | 902263 - Latch Spring Spacer | Add To Cart | |
| 33 | 283324 - Compression Spring | Add To Cart | |
| 34 | 257030 - Washer | Add To Cart | |
| 35 | 243215 - Hex Bolt | Add To Cart | |
| 36 | 604903 - Aeravator Universal WP Wire Group | Call For Details | |
| 37 | 503317 - Electric Lift Kit | Call For Details |
