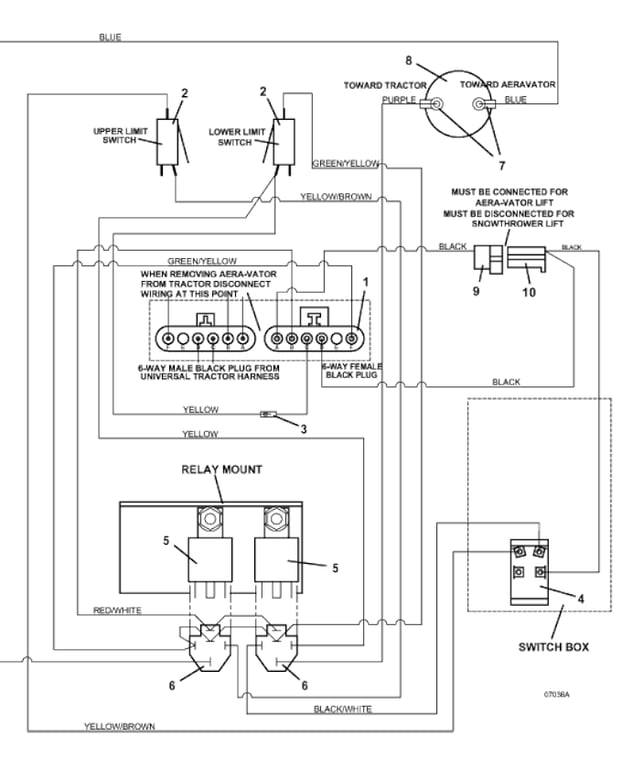

Strap Lift Electric Lift Assembly Wiring Diagram - 2008 and Newer
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 184969 - 6 Way Female Connector | Add To Cart | |
| 2 | 183855 - Switch Lever | Add To Cart | |
| 3 | 202105 - Diode 800V | Add To Cart | |
| 4 | 184177 - 2 Post Rocker Switch | Add To Cart | |
| 5 | 604712 - Heavy Duty Relay Assembly | Call For Details | |
| 6 | 184926 - 5 Way Female Connector | Add To Cart | |
| 7 | 425217 - Boot | Call For Details | |
| 8 | 604515 - Lift Drive Assembly | Call For Details | |
| 9 | 184919 - 2 Way Male Connector | Add To Cart | |
| 10 | 184921 - 2 Way Female Connector | Call For Details | |
| 11 | 605859 - Aeravator Universal WP Wiring Assembly | Call For Details |
