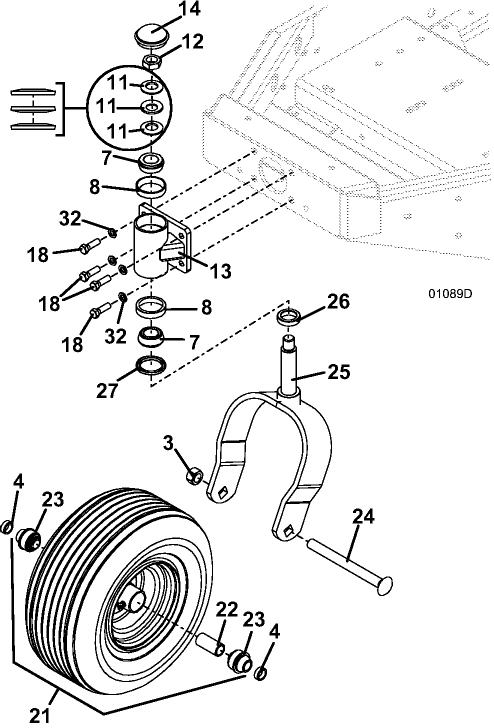

Tail Wheel Options, part 2 727T6 - 2011
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart, call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 3 | 253970 - Lock Nut | Add To Cart | |
| 4 | 902422 - Axle Spacer | Add To Cart | |
| 7 | 122522 - Taper Bearing | Add To Cart | |
| 8 | 123522 - Bearing Cup | Add To Cart | |
| 11 | 257320 - Spring Washer | Add To Cart | |
| 12 | 254505 - Jam Nylon-Top Lock Nut | Add To Cart | |
| 13 | 604596 - R Rear Fork Pivot Housing Assembly (includes items 18 32) | Add To Cart | |
| 14 | 481434 - Dust Cap | Add To Cart | |
| 18 | 243334 - GR 8 Hex Bolt | Add To Cart | |
| 21 | 603975 - 13 x 6.5 x 6 Rear Wheel Assembly with Bearing | Add To Cart | |
| - | 482355 - Ribbed Tire | Add To Cart | |
| - | 483306 - Wheel without Tire - tan | Add To Cart | |
| 22 | 902429 - Center Rear Axle Spacer | Add To Cart | |
| 23 | 120048 - DP Wheel Ball Bearing | Add To Cart | |
| 24 | 247725 - Carriage Bolt | Add To Cart | |
| 25 | 645221 - Tail Wheel Fork with Tapered Bearing | Add To Cart | |
| 26 | 282615 - Spacer | Add To Cart | |
| 27 | 125855 - Seal | Add To Cart | |
| 32 | 257412 - Lock Washer | Add To Cart |
