Transmissions

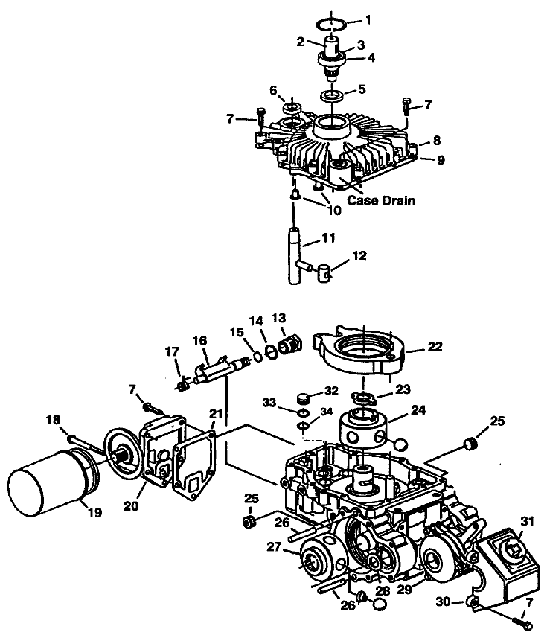

Gemini 770 Series Transmission Main Housing Assembly - 700 series tractors
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 263175 - Internal Retainer | Add To Cart | |
| 2 | 103743 - Input Shaft | Call For Details | |
| - | 103738 - Input Shaft | Call For Details | |
| 3 | 263526 - External Retainer | Call For Details | |
| - | 263524 - External Retainer | Add To Cart | |
| 4 | 120054 - Ball Bearing .750 x 1.575 x .470 | Add To Cart | |
| - | 120054 - Ball Bearing .670 x 1.575 | Add To Cart | |
| 5 | 125335 - Seal | Add To Cart | |
| - | 125250 - Seal | Add To Cart | |
| 6 | 125170 - Seal | Add To Cart | |
| 7 | 250296 - Machine Screw | Call For Details | |
| 8 | 103770 - Pump Cover | Call For Details | |
| - | 103769 - Pump Cover with Input Shaft | Call For Details | |
| 9 | 420341 - Pump Cover Gasket | Add To Cart | |
| 10 | not available | Unavailable | |
| 11 | 103748 - Control Shaft | Add To Cart | |
| 12 | not available | Unavailable | |
| 13 | 103740 - Dump Valve Fitting | Call For Details | |
| 14 | 126537 - O-Ring | Add To Cart | |
| 15 | 126526 - O-Ring .437 ID x .062 | Add To Cart | |
| 16 | 284704 - Dump Valve Bracket | Call For Details | |
| 17 | 284409 - Torsion Spring | Call For Details | |
| 18 | not available | Unavailable | |
| 19 | 100850 - Transaxle Oil Filter | Add To Cart | |
| 20 | 103773 - Base Oil Filter | Call For Details | |
| 21 | 420342 - Top Cover Gasket | Add To Cart | |
| 22 | 103777 - Ring Cam S/A | Add To Cart | |
| 23 | 103745 - Drive Input | Call For Details | |
| 24 | 103776 - Pump Rotor Assembly | Add To Cart | |
| 25 | not available | Unavailable | |
| 26 | 103744 - Dowel .278 | Add To Cart | |
| 27 | 103775 - Motor Rotor | Add To Cart | |
| 28 | 125260 - Seal | Add To Cart | |
| 29 | not available | Unavailable | |
| 30 | 103767 - Brake Cover | Call For Details | |
| 31 | 103741 - Dust Boot | Call For Details | |
| 32 | 103727 - Dampening Piston Assembly .750 | Call For Details | |
| 33 | 126636 - Backup Ring .577 ID x .086 x .053 | Add To Cart | |
| 34 | 126530 - O-Ring .549 ID x .103 | Add To Cart | |
| 35 | 103700 - Check Valve Body | Add To Cart | |
| 36 | 300035 - Steel Ball | Add To Cart | |
| 37 | 103699 - Check Valve Ball Retainer | Add To Cart |
