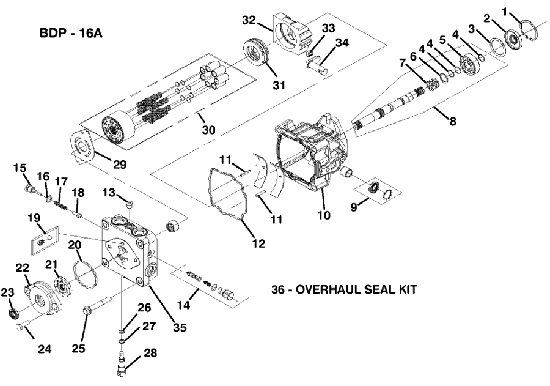

Transmissions Model G1-G2 - BDP-16A Hydro Pump
Click On a Part Number Below for Details
NOTE: This page is under construction; please select your part(s) number(s)and call toll-free 866-698-4070 to order.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 130088 - Input Seal Retaining Ring | Add To Cart | |
| 2 | 125363 - Seal | Add To Cart | |
| 3 | 130086 - Input Seal Spacer | Add To Cart | |
| 4 | 130170 - Wire Retaining Ring | Add To Cart | |
| 5 | 130080 - Input Bearing | Add To Cart | |
| 6 | 130220 - Block Thrust Washer | Add To Cart | |
| 7 | 130015 - Block Spring | Add To Cart | |
| 8 | 130178 - Shaft Sub-Assembly | Call For Details | |
| 9 | 125357 - Trunnion Seal Kit | Add To Cart | |
| 10 | 130054 - Housing Kit - 16A | Call For Details | |
| 11 | 130046 - Dowel Pin | Add To Cart | |
| 12 | 130184 - Molded Seal Ring | Add To Cart | |
| 13 | 103739 - O-Ring Boss Plug | Add To Cart | |
| 14 | 130160 - Shock Valve | Add To Cart | |
| 15 | 130030 - Check Plug | Add To Cart | |
| 16 | 130031 - Check Plug O-Ring | Add To Cart | |
| 17 | 130157 - Poppet Spring | Add To Cart | |
| 18 | 130155 - Poppet | Add To Cart | |
| 19 | 130027 - Ball & Spring Assembly | Add To Cart | |
| 20 | 130020 - Charge Cover Seal Ring - Square | Add To Cart | |
| 21 | 130060 - Gerotor Set | Add To Cart | |
| 22 | 130022 - Charge Pump Cover | Add To Cart | |
| 23 | 125165 - Seal | Add To Cart | |
| 24 | 270078 - Charge Cover Screw with Thru Shaft | Add To Cart | |
| 25 | 271080 - Flanged Head Hex Screw | Call For Details | |
| 26 | 130018 - Bypass Valve O-Ring | Add To Cart | |
| 27 | 130017 - Bypass Valve Backup Ring | Add To Cart | |
| 28 | not available | Unavailable | |
| 29 | 130214 - Valve Plate | Add To Cart | |
| 30 | 130152 - Block Kit | Add To Cart | |
| 31 | 130008 - Thrust Bearing | Add To Cart | |
| 32 | not available | Unavailable | |
| 33 | 130065 - Slot Guide | Add To Cart | |
| 34 | 130035 - Control Shaft | Call For Details | |
| 35 | 130044 - End Cap Kit | Call For Details | |
| 36 | 130186 - Seal Kit | Add To Cart |
