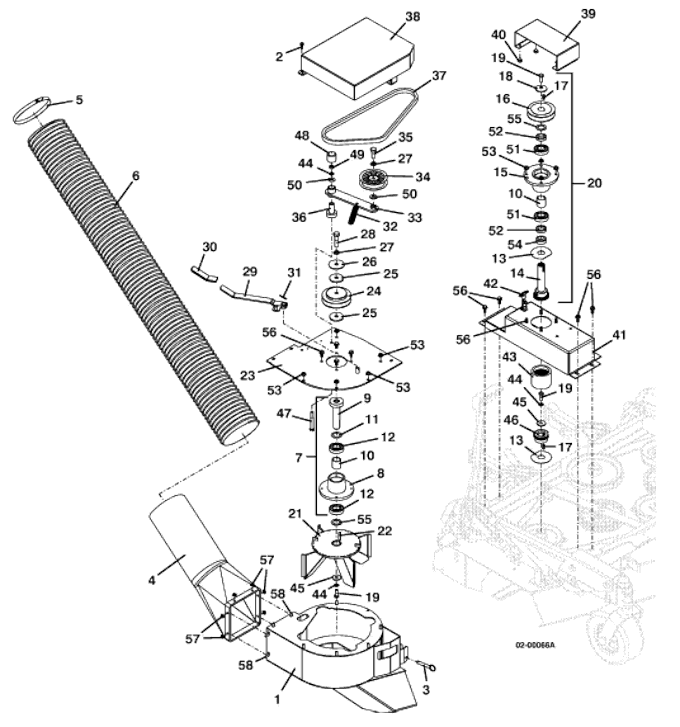

Vacuum and Drive Assembly for FrontMount Mowers - Model 852 & 861
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,Call Toll-Free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 644346 - Blower Housing 5.5 Decks | Add To Cart | |
| 2 | 253175 - Hex Whiz Bolt | Add To Cart | |
| 3 | 260400 - Hitch Pin | Add To Cart | |
| 4 | 422020 - Hose Adapter Tube | Add To Cart | |
| 5 | 280345 - 6' Hose Clamp | Add To Cart | |
| 6 | 424408 - 57' Flex Hose | Add To Cart | |
| 7 | 604795 - Vac Fan Spindle Assembly | Add To Cart | |
| 8 | 320522 - Vac Fan Spindle Housing | Add To Cart | |
| 9 | 604765 - Vac Spindle Shaft | Add To Cart | |
| 10 | 903650 - Drive Bearing Spacer | Add To Cart | |
| 11 | 257106 - Washer | Add To Cart | |
| 12 | 110080 - Ball Bearing | Add To Cart | |
| 13 | 770045 - Washer | Add To Cart | |
| 14 | 604766 - 98S Vac Spindle Shaft Assembly | Add To Cart | |
| - | 261061 - Roll Pin | Add To Cart | |
| - | 831036 - Upper Flex Coupler | Add To Cart | |
| - | 882057 - 98S Spindle Shaft | Call For Details | |
| 15 | 320525 - Spindle Housing | Call For Details | |
| 16 | 414685 - Sheave (Used on 9852 Vacs) | Add To Cart | |
| - | 414696 - Sheave (Used on 9861 Vacs) | Add To Cart | |
| 17 | 281580 - Key Square | Add To Cart | |
| 18 | 257041 - Cupped Washer | Add To Cart | |
| 19 | 243331 - Hex Bolt | Add To Cart | |
| 20 | 604787 - 9852 Vacuum Drive Spindle Assembly | Add To Cart | |
| - | 604788 - 9861 Vacuum Drive Spindle Assembly | Add To Cart | |
| 21 | 824533 - 25MM Vac Fan | Add To Cart | |
| 22 | 281583 - Key Square | Add To Cart | |
| 23 | 643813 - 90S Vacuum Blower Top | Add To Cart | |
| 24 | 415845 - Sheave | Add To Cart | |
| 25 | 421200 - Fiber Washer | Add To Cart | |
| 26 | 257061 - Washer | Add To Cart | |
| 27 | 257432 - Lock Washer | Add To Cart | |
| 28 | 243581 - Grade 5 Hex Bolt | Add To Cart | |
| 29 | 643042 - Belt Tensioner Arm | Add To Cart | |
| 30 | 422150 - Handle Grip | Add To Cart | |
| 31 | 260652 - Cotter Pin | Add To Cart | |
| 32 | 283821 - Extension Spring | Add To Cart | |
| 33 | 824479 - Vacuum Idler Arm Assembly | Add To Cart | |
| - | 121756 - Oilite Bearing | Add To Cart | |
| 34 | 393200 - Idler | Add To Cart | |
| 35 | 243565 - Hex Bolt | Add To Cart | |
| 36 | 121650 - Pedestal Bearing | Add To Cart | |
| 37 | 382753 - Vacuum Belt (Used on 9852 Vacuum) | Add To Cart | |
| - | 382765 - Vacuum Belt (Used on 9861 Vacuum) | Add To Cart | |
| 38 | 643763 - Vacuum Belt Shield (Used on 9852 Vacuum) | Add To Cart | |
| - | 643802 - Vacuum Belt Shield (Used on 9861 Vacuum) | Add To Cart | |
| 39 | 643750 - Vacuum Drive Shield | Add To Cart | |
| 40 | 424015 - Rubber Bumper | Add To Cart | |
| 41 | 644087 - Vac Drive Mount (Used on 9852 Vacuum) | Call For Details | |
| - | 644088 - Vac Drive Mount (Used on 9861 Vacuum) | Add To Cart | |
| 42 | 281301 - Rubber Draw Latch | Add To Cart | |
| 43 | 388560 - Nylon Coupler Sleeve | Add To Cart | |
| 44 | 257412 - Lock Washer | Add To Cart | |
| 45 | 774020 - Washer | Add To Cart | |
| 46 | 831039 - Lower Flex Coupler | Add To Cart | |
| 47 | 243360 - Hex Bolt | Add To Cart | |
| 48 | 422098 - Vinyl Cap | Add To Cart | |
| 49 | 254450 - Nut | Add To Cart | |
| 50 | 257062 - Washer | Add To Cart | |
| 51 | 110081 - Ball Bearing | Add To Cart | |
| 52 | 282615 - Spacer | Add To Cart | |
| 53 | 253035 - Whiz Nut | Add To Cart | |
| 54 | 282622 - Spacer | Add To Cart | |
| 55 | 257104 - Washer | Add To Cart | |
| 56 | 253192 - Flanged Hex Whiz Bolt | Add To Cart | |
| 57 | 253025 - Whiz Nut | Add To Cart | |
| 58 | 253176 - Truss Whiz Bolt | Add To Cart |
