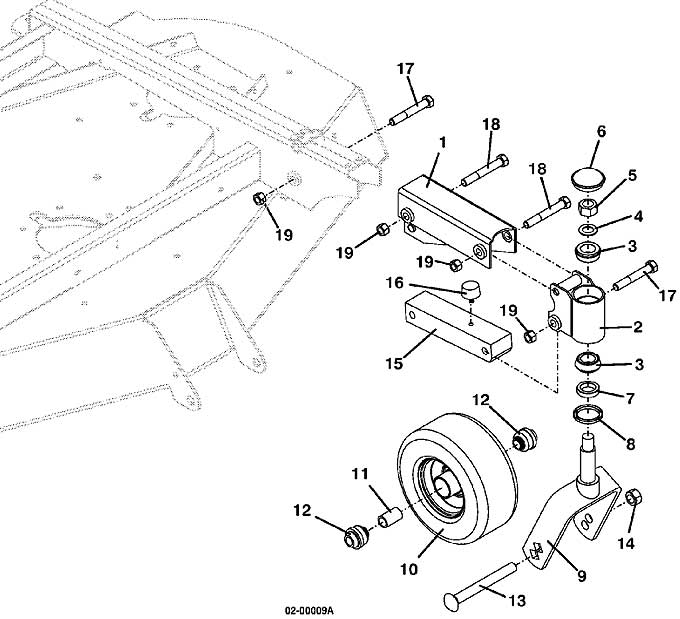

Wheel Lift Assembly Grasshopper 9861 Deck - 2003
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart, call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 643500 - Upper Right Lift Channel | Add To Cart | |
| - | 643501 - Upper Left Lift Channel | Add To Cart | |
| 2 | 824982 - Deck HD Fork Housing | Add To Cart | |
| - | 123522 - Bearing Cup | Add To Cart | |
| 3 | 122522 - Taper Bearing | Add To Cart | |
| 4 | 257091 - 14 GA Bushing Washer | Add To Cart | |
| 5 | 253992 - Lock Nut | Add To Cart | |
| 6 | 481432 - Dust Cap | Add To Cart | |
| 7 | 282615 - Spacer | Add To Cart | |
| 8 | 125855 - Seal | Add To Cart | |
| 9 | 644221 - Tapered Bearing Fork | Add To Cart | |
| 10 | 603973 - 9 x 3.5 x 4 Semi-Pneumatic Wheel Assembly with Bearing | Add To Cart | |
| 11 | 902428 - Center Axle Spacer | Add To Cart | |
| 12 | 120048 - DP Wheel Ball Bearing | Add To Cart | |
| 13 | 247715 - Carriage Bolt | Add To Cart | |
| 14 | 253970 - Lock Nut | Add To Cart | |
| 15 | 822312 - Deck Stabilizer witrh Bumper | Add To Cart | |
| 16 | 424052 - Rubber Bumper | Add To Cart | |
| 17 | 243609 - Hex Bolt | Add To Cart | |
| 18 | 243614 - Hex Bolt | Add To Cart | |
| 19 | 253930 - Lock Nut | Add To Cart |
