Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

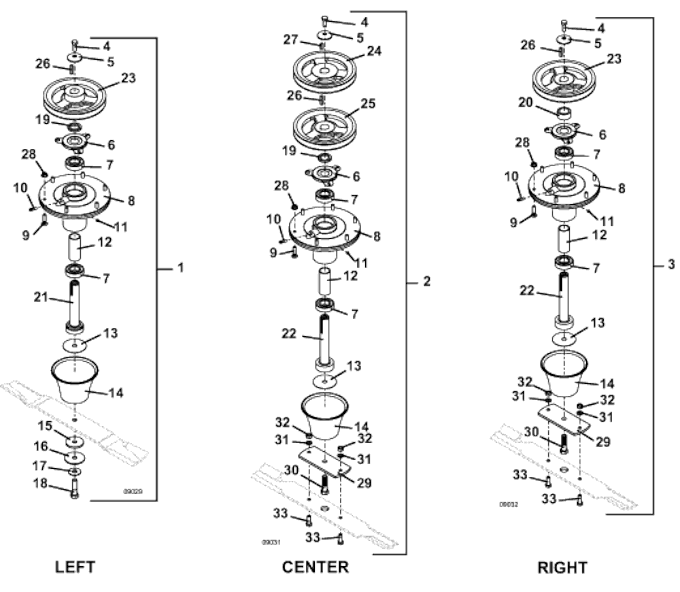

3561R Rear Discharge Deck • Blade Spindle Assembly

2010

Blade Spindle Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Left Spindle Assembly (includes items 4-19, and 21)

623754

2

Center Spindle Assembly (includes items 4-14, 19, 22, and 29-33)

623755

3

Right Center Spindle Assembly (includes items 4-14, 20, 22, & 29-33)

623756

4

Hex Bolt

243331

5

Cupped Washer

257041

6

Bearing Shield

721167

7

25mm 2 Reg. Seal Ball Bearing

110081

8

Machined Spindle Housing

320550

9

Ribbed Neck Round Head Bolt

247141

10

Zerk Grease Fitting

280745

11

Relief Plug

280705

12

Deep Spindle Bearing Spacer

903643

13

Washer

772061

14

Deflector Cone

423680

15

Fiber Washer

421200

16

Washer

257061

17

Hardened-Blade Spindle Washer

257057

18

Grade 8 Flange Hex Bolt

243583

19

Spacer

282607

20

Spacer

282630

21

Spindle Shaft Assembly

604774

22

Spindle Shaft Assembly

605775

23

Sheave

414745

24

Sheave

415746

25

Sheave

831430

26

Square Key

281586

27

Square Key

281580

28

Whiz Nut

253035

29

CCW Blade Mount with Decal

693500

30

Left Handed Hex Bolt

243582

31

Lock Washer

257412

32

Nut

254450

33

Hex Bolt

243330

34

Washer

257106

35

Washer

257107
