Genuine OEM Grasshopper® Mower Parts Diagrams

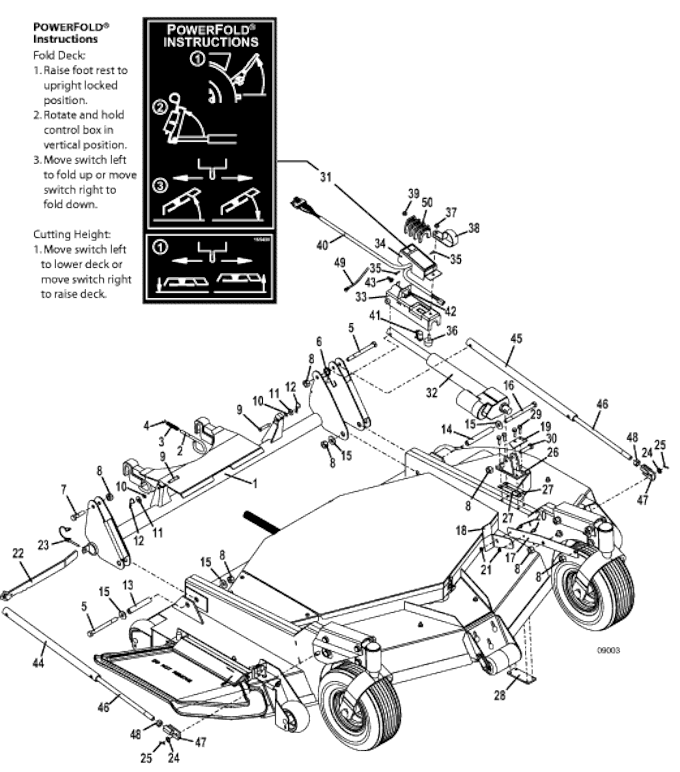

Lift Arm with Optional Electric Powerfold Actuator • 3472R Deck
2009
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
3472 Lift Arm Assembly |
604500 |
2 |
Deck Mount Latch Pin |
730433 |
3 |
Compression Spring |
283285 |
4 |
External Retainer |
263490 |
5 |
Hex Bolt |
243635 |
6 |
Torsion Spring |
284423 |
7 |
Grade 5 Hex Bolt |
243581 |
8 |
Lock Nut |
253930 |
9 |
Clevis Pin |
261362 |
10 |
Push-On Retainer |
262950 |
11 |
Washer |
257040 |
12 |
Hair Pin |
260523 |
13 |
3472 right Lift Arm Pivot Tube |
902002 |
14 |
3472 left Lift Arm Pivot Tube |
902001 |
15 |
Washer |
257060 |
16 |
Hex Bolt |
243640 |
17 |
3472 Powerfold Cut Height Arm |
774672 |
18 |
3472 Powerfold Cut Height Plate |
729498 |
- |
3472 Cutting Height Decal |
162210 |
19 |
3472 Powerfold Cut Height Pointer |
774673 |
20 |
Hex Whiz Bolt |
253173 |
21 |
Whiz Nut |
253025 |
22 |
Standard Traction Kit Tool |
783068 |
23 |
Linch Pin |
261624 |
24 |
Washer |
257063 |
25 |
Cotter Pin |
260650 |
26 |
34 Electric Lift Actuator Mount |
644056 |
27 |
Electric Lift Actuator Mount Spacer |
900142 |
28 |
34 Actuator Threaded Plate |
776089 |
29 |
Hex Flange Whiz Bolt |
253193 |
30 |
Hex Bolt |
243580 |
31 |
Powerfold Pictorial Decal |
165430 |
32 |
12 volt Actuator |
180035 |
- |
Electric Motor |
182540 |
33 |
Electric Lift Switch Mount |
644805 |
34 |
Electric Lift Switch Shield |
722005 |
35 |
Hex Machine Screw |
250169 |
36 |
Bumper with Stud |
424056 |
37 |
Whiz Nut |
253035 |
38 |
Power Fold Height Adjustment Spacer Mount |
732315 |
39 |
.25 THK Spacer |
902297 |
40 |
Deck Tilt/Height Adjustment Wiring Assembly |
605965 |
41 |
Snap Mount Plunger SPST NC Switch |
183867 |
42 |
Toggle |
184084 |
43 |
Toggle Switch Boot |
425200 |
44 |
3472 Right Lift Linkage Tube |
645178 |
45 |
3472 left Lift Linkage Tube |
645179 |
46 |
3472 Linkage Rod |
830010 |
47 |
3472 Lift Rod Bracket |
645177 |
48 |
Nut |
254490 |
49 |
Releasable Wire Tie |
423149 |
50 |
PowerFold Height Adjustment Spacer |
423697 |
