Genuine OEM Grasshopper® Mower Parts Diagrams

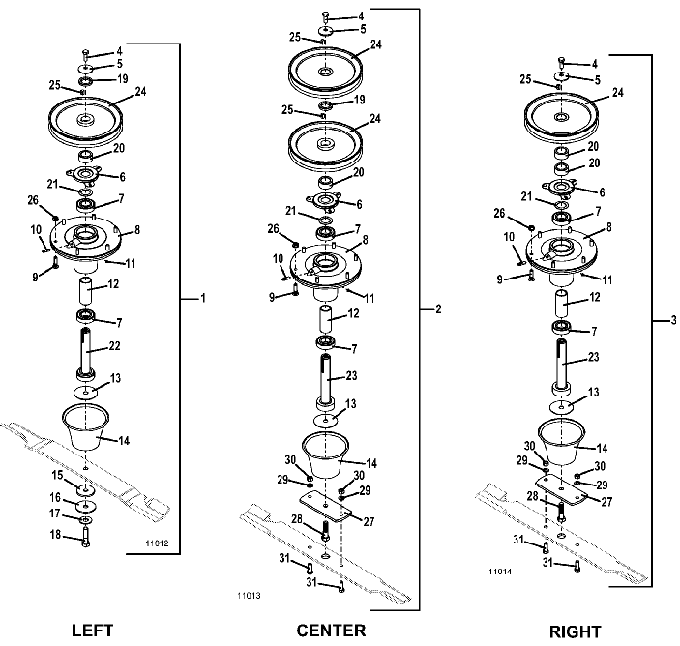

3572R Rear Discharge Deck • Blade Spindle Assembly
2013
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
Left Spindle Assembly (includes items 4-22) |
623747 |
2 |
Center Spindle Assembly (includes items 4-14, 19-21, and 27-31) |
623748 |
3 |
Right Spindle Assembly (includes items 4-14, 20,21,23 and 27-31) |
623749 |
4 |
Hex Bolt |
243331 |
5 |
Cupped Washer |
257041 |
6 |
Bearing Shield |
721167 |
7 |
Shield Bearing |
110081 |
8 |
Aluminum Spindle Housing Assembly |
604413 |
9 |
Ribbed Neck Round Head Bolt |
247141 |
10 |
Grease Fitting - Zerk |
280745 |
11 |
Relief Plug |
280705 |
12 |
Deep Spindle Bearing Spacer |
903643 |
13 |
Washer |
772061 |
14 |
Deflector Cone |
423680 |
15 |
Fiber Washer |
421200 |
16 |
Washer |
257061 |
17 |
Hardened-Blade Spindle Washer |
257057 |
18 |
Grade 8 Flange Hex Bolt |
243583 |
19 |
Spacer |
282607 |
20 |
Spacer |
282630 |
21 |
Washer |
257106 |
22 |
98 Series Spindle Shaft Assembly |
604774 |
23 |
Spindle Shaft Assembly |
605775 |
24 |
Sheave |
831542 |
25 |
Square Key |
281575 |
26 |
Whiz Nut |
253035 |
27 |
Counter ClockWise Blade Mount with Decal |
693500 |
28 |
Left Handed Hex Bolt |
243582 |
29 |
Lock Washer |
257412 |
30 |
Nut |
254450 |
31 |
Hex Bolt |
243330 |
