Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

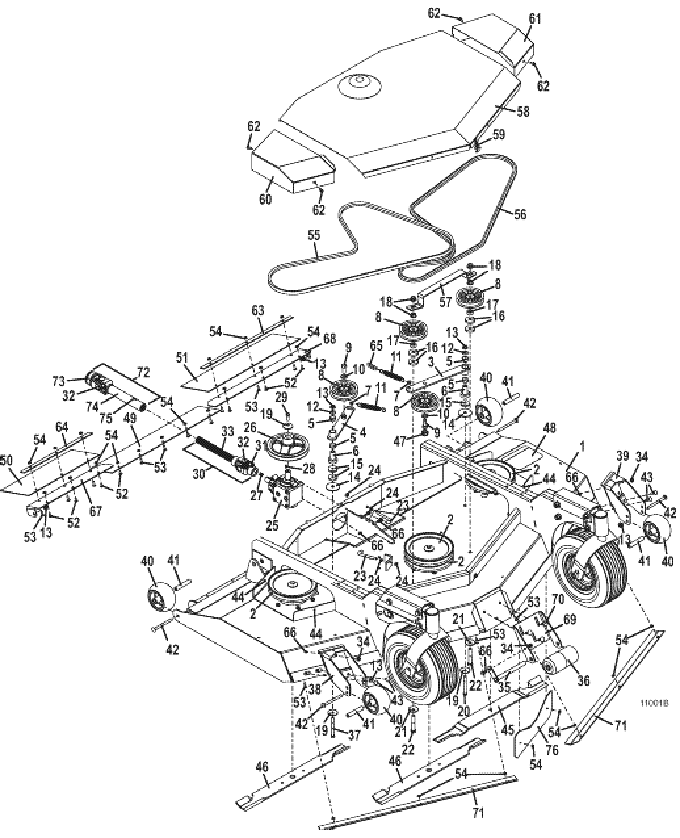

3572R Rear Discharge Deck • Mower Assembly

2015

Mower Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

3572R Deck Weldment

645252

2

Sheave

831542

3

Idler Arm w/Bearing & Pedestal

824583

4

Idler Arm w/Bearing & Pedestal

824502

5

Oilite Bearning

121756

6

Pedestal Bearing

121650

7

Nylon Bearing

422520

8

Idler

393225

9

Hex Bolt

243565

10

Washer

257062

11

Spring Extension w/Swivel

283820

12

Washer

257040

13

Whiz Nut

253043

14

Washer

257061

15

Washer

883801

16

Washer

883804

17

Spacer

902313

18

Spiral Loc Flange Nut

253067

19

Cupped Washer

257041

20

Hex Bolt

243375

21

Washer

257059

22

Hex Bolt

243600

23

Idler Adjustment "J" Bolt

730391

24

Nut

254450

25

Rt Angle Clockwise Gearbox

390019

26

Sheave

415915

27

Woodruff Key

281833

28

Woodruff Key

281828

29

Hex Bolt

243331

30

ASM 11.0 UN Half Shaft

398527

31

Yoke

401010

32

Cross & Bearing

121010

33

Yoke & Shaft 6x11

402611

34

Whiz Nut

253035

35

Roller Lock Pin

644512

36

Center 2 Piece Roller Assembly

603725

37

Hex .375-16x3.75

243381

38

Rt Anti-Scalp Roller Mount

645580

39

Lt Anti-Scalp Roller Mount

645579

40

Center Hub Anti-Scalp Wheel

484230

41

Bearing Tube

942137

42

Carriage Bolt

247310

43

Carriage Bolt

247135

44

Speed Nut

254431

45

25" High Lift Notch Blade

320253

46

25" Medium Lift Notch Counter Clockwise Blade

320290

47

Idler Arm Stabilizer Cap

423670

48

Foot Rest Extension Tread

420904

49

3572 Center Flap Deck

424157

50

3572 Rt Flap Deck

424158

51

3572 Lt Flap Deck

424159

52

Truss Whiz Bolt

253176

53

Truss Whiz Bolt

253177

54

Whiz Nut

253025

55

Belt

383000

56

Belt

382157

57

Support

732608

58

3572 Center Shield Assembly

604858

59

Rubber Draw Latch

281300

60

Shield

722956

61

Shield

722957

62

Hex Whiz Bolt

253173

63

Strap

782358

64

Strap

782359

65

Chain - 2 Links

820316

66

Hex Whiz Flange Bolt

253192

67

Rt Extension

729658

68

3572 Lt Rear Extension Bracket

729659

69

Roller Mount

755071

70

Carriage Bolt

247253

71

M172/9772 Air Dam

754122

72

QD UN Half Sleeve

398918

73

Yoke Splined Quick Disconnect

401019

74

Yoke w/Sleeve #6

401018

75

Grease (Zerk) Fitting

280740

76

3572 Shroud Extension Bracket

724976

77

3552/3561 Pict Decal Set

605407
