Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

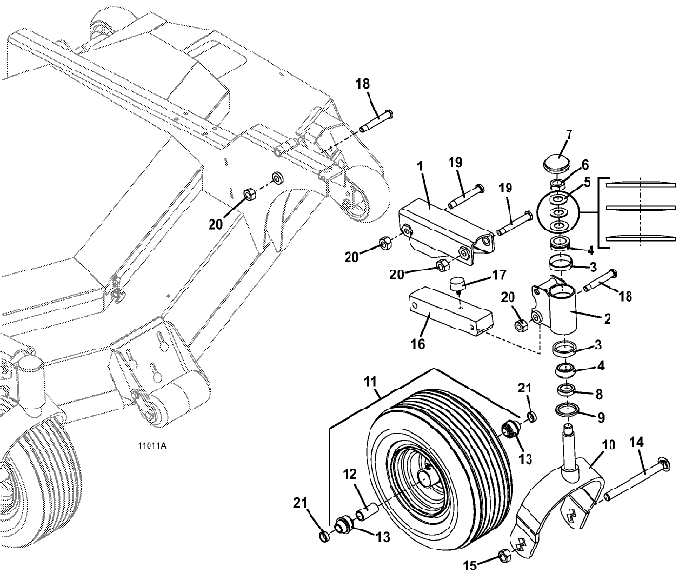

3572R Rear Discharge Front Mount Decks • Wheel Lift Assembly

2015

Wheel Lift Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Right Lift Channel

645530

-

Left Lift Channel

645531

2

Fork Housing

824983

3

Bearing Cup

123522

4

Taper Bearing

122522

5

Spring Washer

257320

6

Nylon-Top Jam Lock Nut

254505

7

Domed Dust Cap

481434

8

Spacer

282615

9

Seal

125855

10

Tapered Bearing Fork

645220

11

Rear Wheel Assembly w/Bearing

603975

-

Rib Tire 13x6.50x6

482355

-

Wheel

483306

12

Center Axle Spacer

902429

13

DP Wheel Ball Bearing

120048

14

Carriage Bolt

247726

15

Lock Nut

253970

16

Deck Stabilizer with Bumper

822312

17

Rubber Bumper

424053

18

Hex Bolt

243609

19

Hex Bolt

243614

20

Lock Nut

253930

21

Axle Spacer

902422

Return to 3572R Index Return to Top
