Genuine OEM Grasshopper® Mower Parts Diagrams

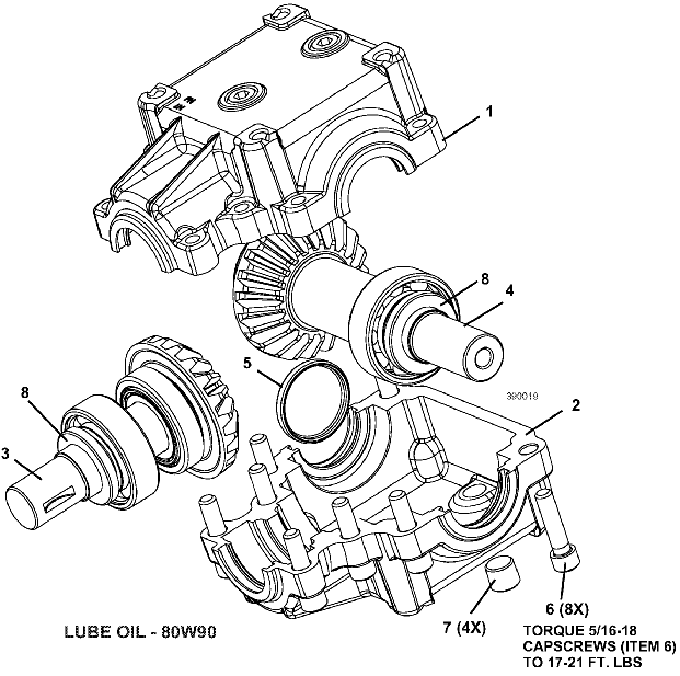

3572R Rear Discharge Front Mount Decks • Gearbox 390019
2017
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart, call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
Half Housing (Tap Side) |
391731 |
2 |
Half Housing (Thru Side) |
391732 |
3 |
Shaft Assembly |
393540 |
4 |
Not Available |
393541 |
5 |
1.5 Inch Expansion Plug |
365541 |
6 |
Socket Head Screw |
259596 |
7 |
Not Available |
365511 |
8 |
Seal |
125391 |
