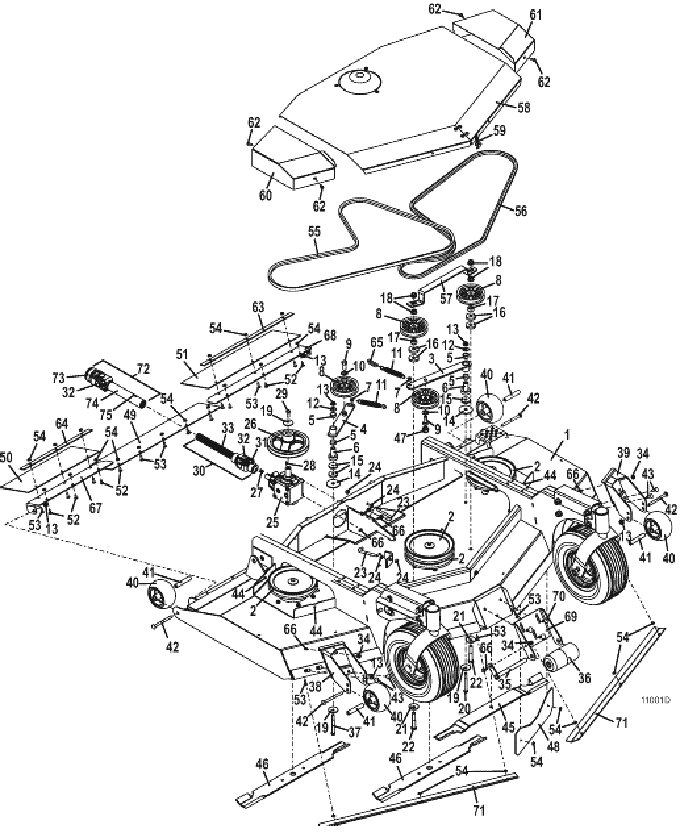

3572R Rear Discharge Deck Mower Assembly - 2017
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 645252 - 3572R Deck Weldment | Call For Details | |
| 2 | 831542 - Sheave | Add To Cart | |
| 3 | 824583 - Idler Arm w/Bearing & Pedestal | Call For Details | |
| 4 | 824502 - Idler Arm w/Bearing & Pedestal | Add To Cart | |
| 5 | 121756 - Oilite Bearning | Add To Cart | |
| 6 | 121650 - Pedestal Bearing | Add To Cart | |
| 7 | 422520 - Nylon Bearing | Add To Cart | |
| 8 | 393225 - Idler | Add To Cart | |
| 9 | 243565 - Hex Bolt | Add To Cart | |
| 10 | 257062 - Washer | Add To Cart | |
| 11 | 283820 - Spring Extension w/Swivel | Add To Cart | |
| 12 | 257040 - Washer | Add To Cart | |
| 13 | 253043 - Whiz Nut | Add To Cart | |
| 14 | 257061 - Washer | Add To Cart | |
| 15 | 883801 - Washer | Add To Cart | |
| 16 | 883804 - Washer | Add To Cart | |
| 17 | 902313 - Spacer | Add To Cart | |
| 18 | 253067 - Spiral Loc Flange Nut | Add To Cart | |
| 19 | 257041 - Cupped Washer | Add To Cart | |
| 20 | 243375 - Hex Bolt | Add To Cart | |
| 21 | 257059 - Washer | Add To Cart | |
| 22 | 243600 - Hex Bolt | Add To Cart | |
| 23 | 730391 - Idler Adjustment 'J' Bolt | Add To Cart | |
| 24 | 254450 - Nut | Add To Cart | |
| 25 | 390019 - Rt Angle Clockwise Gearbox | Add To Cart | |
| 26 | 415915 - Sheave | Call For Details | |
| 27 | 281833 - Woodruff Key | Add To Cart | |
| 28 | 281828 - Woodruff Key | Add To Cart | |
| 29 | 243331 - Hex Bolt | Add To Cart | |
| 30 | 398527 - ASM 11.0 UN Half Shaft | Add To Cart | |
| 31 | 401010 - Yoke | Add To Cart | |
| 32 | 121010 - Cross & Bearing | Add To Cart | |
| 33 | 402611 - Yoke & Shaft 6x11 | Add To Cart | |
| 34 | 253035 - Whiz Nut | Add To Cart | |
| 35 | 644512 - Roller Lock Pin | Add To Cart | |
| 36 | 603725 - Center 2 Piece Roller Assembly | Add To Cart | |
| 37 | 243381 - Hex .375-16x3.75 | Add To Cart | |
| 38 | 645580 - Rt Anti-Scalp Roller Mount | Add To Cart | |
| 39 | 645579 - Lt Anti-Scalp Roller Mount | Add To Cart | |
| 40 | 484230 - Center Hub Anti-Scalp Wheel | Add To Cart | |
| 41 | 942137 - Bearing Tube | Add To Cart | |
| 42 | 247310 - Carriage Bolt | Add To Cart | |
| 43 | 247135 - Carriage Bolt | Add To Cart | |
| 44 | 254431 - Speed Nut | Add To Cart | |
| 45 | 320253 - 25 inch High Lift Notch Blade | Call For Details | |
| 46 | 320290 - 25 inch Medium Lift Notch Counter Clockwise Blade | Call For Details | |
| 47 | 423670 - Idler Arm Stabilizer Cap | Add To Cart | |
| 48 | 724976 - 3572 Shroud Extension Bracket | Add To Cart | |
| 49 | 424157 - 3572 Center Flap Deck | Add To Cart | |
| 50 | 424158 - 3572 Rt Flap Deck | Add To Cart | |
| 51 | 424159 - 3572 Lt Flap Deck | Add To Cart | |
| 52 | 253176 - Truss Whiz Bolt | Add To Cart | |
| 53 | 253177 - Truss Whiz Bolt | Add To Cart | |
| 54 | 253025 - Whiz Nut | Add To Cart | |
| 55 | 383000 - Belt | Add To Cart | |
| 56 | 382157 - Belt | Add To Cart | |
| 57 | 732608 - Support | Call For Details | |
| 58 | 604858 - 3572 Center Shield Assembly | Call For Details | |
| 59 | 281300 - Rubber Draw Latch | Add To Cart | |
| 60 | 722956 - Shield | Add To Cart | |
| 61 | 722957 - Shield | Call For Details | |
| 62 | 253173 - Hex Whiz Bolt | Add To Cart | |
| 63 | 782358 - Strap | Add To Cart | |
| 64 | 782359 - Strap | Add To Cart | |
| 65 | 820316 - Chain - 2 Links | Add To Cart | |
| 66 | 253192 - Hex Whiz Flange Bolt | Add To Cart | |
| 67 | 729658 - Rt Extension | Call For Details | |
| 68 | 729659 - 3572 Lt Rear Extension Bracket | Call For Details | |
| 69 | 755071 - Roller Mount | Add To Cart | |
| 70 | 247253 - Carriage Bolt | Add To Cart | |
| 71 | 754122 - M172/9772 Air Dam | Add To Cart | |
| 72 | 398918 - QD UN Half Sleeve | Add To Cart | |
| 73 | 401019 - Yoke Splined Quick Disconnect | Add To Cart | |
| 74 | 401018 - Yoke w/Sleeve #6 | Add To Cart | |
| 75 | 280740 - Grease (Zerk) Fitting | Add To Cart | |
| 76 | 605407 - 3552/3561 Pict Decal Set | Call For Details |
