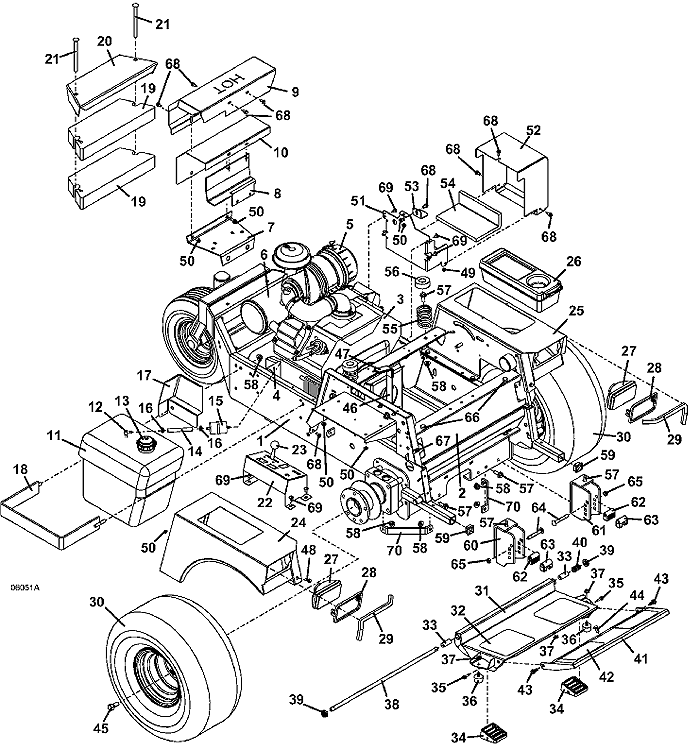

1

620T Lower Frame

643873

2

600T Upper Frame

644874

3

20hp Kohler Front Shaft Engine

100147

-

Kohler Engine Shim

900117

4

Kohler Oil Filter

100802

5

Outer HD Air Filter

100936

-

Clip for Air Cleaner Cover

100197

-

Air Cleaner Cover

100199

-

Dust Ejector

100202

-

Kohler Rain Cap

100203

-

Outer HD Air Filter

100936

-

Inner HD Air Filter

100937

6

Kohler CH18 45 degree Muffler

101216

-

Kohler Exhaust Gasket

101041

7

Lower Muffler Bracket

729270

8

Shield Mount Bracket

643117

9

Muffler Shield

722391

10

Inner Panel Shield

722309

11

Fuel Tank Assembly with Draw Tube

603813

12

Fuel Draw Tube

101819

13

Fuel Cap

100210

14

Fuel Hose

821710

15

Kohler Fuel Filter

101001

16

Spring Hose Clamp

280260

17

right Fuel Tank Heat Shield

721123

18

Fuel Tank Mounting Bracket

643144

19

34 lb. Counterweight

323933

20

34 lb. Weight Cover

729514

21

Carriage Bolt

247325

22

200 Console Panel with Decal

693115

23

Mechanical Choke

142216

24

right 620T Fender with Decals

693198

-

620 right Trim Decal

163444

25

left 620T Fender with Decals

693199

-

620 left Trim Decal

163445

26

Tool Box

422040

27

Flood Worklamp

182253

28

Snap Mount Worklamp Bezel

182251

29

Trim

822632

30

Wheel & Turf Tire 20 x 10 x 8

483922

-

Turf Tire 20 x 10 x 8

482472

-

Bar Tread Tire 21 x 11 x 8

482478

-

5 Bolt Wheel 8 x 7.75

483414

-

right Wheel & Bar Tread Tire 21 x 11 x 8

483926

-

left Wheel & Bar Tread Tire 21 x 11 x 8

483927

31

620T Adjustable Foot Platform Assembly

604348

32

Foot Rest Tread

420905

33

Nylon Bearing

422615

34

Footrest Isolator Block

424100

35

Hex Bolt

243026

36

Rubber Bumper

424052

37

Whiz Nut

253035

38

Footrest Pivot Rod

780656

39

Nylon Insert Nut

253470

40

Compression Spring

283312

41

600 Foot Platform Extension

603300

42

Foot Rest Extension Tread

420904

43

Hex Flange Whiz Bolt

253192

44

Carriage Bolt

247130

45

Lug Bolt

248565

46

Throttle Assembly

603854

-

Control Cable Assembly

323643

-

Throttle Lever Stop

722009

-

Heavy Duty Throttle Lever Stop

722736

47

Handle Grip

422150

48

Hex Whiz Bolt

253175

49

Nylon Insert Nut

253440

50

Whiz Nut

253025

51

G2 AC Battery Box

644099

52

AC Battery Cover

644162

53

Battery Clamp

729001

54

Battery Tray Pad

427273

55

Compression Spring

283516

56

Seat Spring Cap

422127

57

Whiz Flange Bolt

253203

58

Whiz Nut

253043

59

1" ID Square Plastic Plug

422065

60

600 QD right Deck Mount

643894

61

600 QD left Deck Mount

643894

62

Deck Mount Bushing

282575

63

Floating Deck Mount Bushing

282576

64

Special Carriage Bolt

247280

65

Nylon Insert Nut

253460

66

Rubber Bumper

424015

67

Speed Nut

254431

68

Hex Whiz Bolt

253173

69

Truss Whiz Bolt

253176

70

Crossmember Strap

732824

71

620T2 Decal Set

604240
