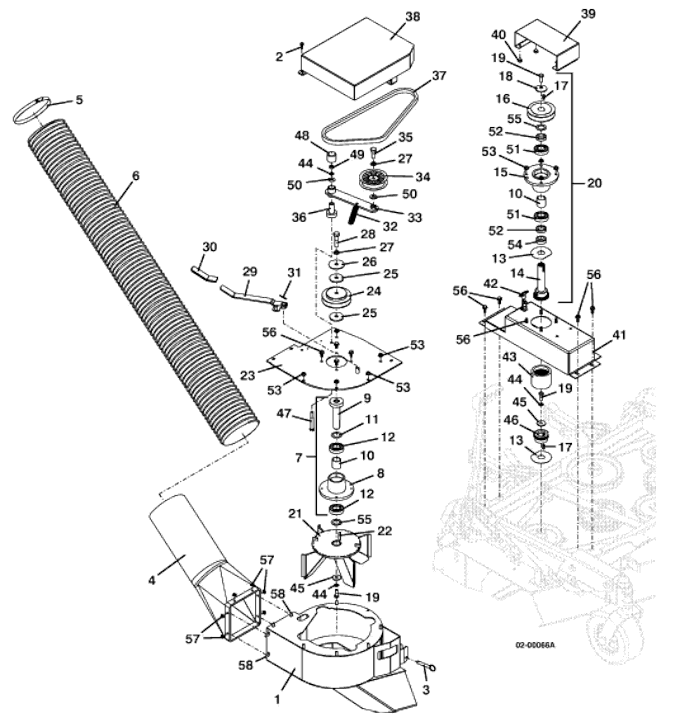

1

Blower Housing 5.5 Decks

644346

2

Hex Whiz Bolt

253175

3

Hitch Pin

260400

4

Hose Adapter Tube

422020

5

6" Hose Clamp

280345

6

57" Flex Hose

424408

7

Vac Fan Spindle Assembly

604795

8

Vac Fan Spindle Housing

320522

9

Vac Spindle Shaft

604765

10

Drive Bearing Spacer

903650

11

Washer

257106

12

Ball Bearing

110080

13

Washer

770045

14

98S Vac Spindle Shaft Assembly

604766

-

Roll Pin

261061

-

Upper Flex Coupler

831036

-

98S Spindle Shaft

882057

15

Spindle Housing

320525

16

Sheave (Used on 9852 Vacs)

414685

-

Sheave (Used on 9861 Vacs)

414696

17

Key Square

281580

18

Cupped Washer

257041

19

Hex Bolt

243331

20

9852 Vacuum Drive Spindle Assembly

604787

-

9861 Vacuum Drive Spindle Assembly

604788

21

25MM Vac Fan

824533

22

Key Square

281583

23

90S Vacuum Blower Top

643813

24

Sheave

415845

25

Fiber Washer

421200

26

Washer

257061

27

Lock Washer

257432

28

Grade 5 Hex Bolt

243581

29

Belt Tensioner Arm

643042

30

Handle Grip

422150

31

Cotter Pin

260652

32

Extension Spring

283821

33

Vacuum Idler Arm Assembly

824479

-

Oilite Bearing

121756

34

Idler

393200

35

Hex Bolt

243565

36

Pedestal Bearing

121650

37

Vacuum Belt (Used on 9852 Vacuum)

382753

-

Vacuum Belt (Used on 9861 Vacuum)

382765

38

Vacuum Belt Shield (Used on 9852 Vacuum)

643763

-

Vacuum Belt Shield (Used on 9861 Vacuum)

643802

39

Vacuum Drive Shield

643750

40

Rubber Bumper

424015

41

Vac Drive Mount (Used on 9852 Vacuum)

644087

-

Vac Drive Mount (Used on 9861 Vacuum)

644088

42

Rubber Draw Latch

281301

43

Nylon Coupler Sleeve

388560

44

Lock Washer

257412

45

Washer

774020

46

Lower Flex Coupler

831039

47

Hex Bolt

243360

48

Vinyl Cap

422098

49

Nut

254450

50

Washer

257062

51

Ball Bearing

110081

52

Spacer

282615

53

Whiz Nut

253035

54

Spacer

282622

55

Washer

257104

56

Flanged Hex Whiz Bolt

253192

57

Whiz Nut

253025

58

Truss Whiz Bolt

253176
