Genuine OEM Grasshopper® Mower Parts Diagrams

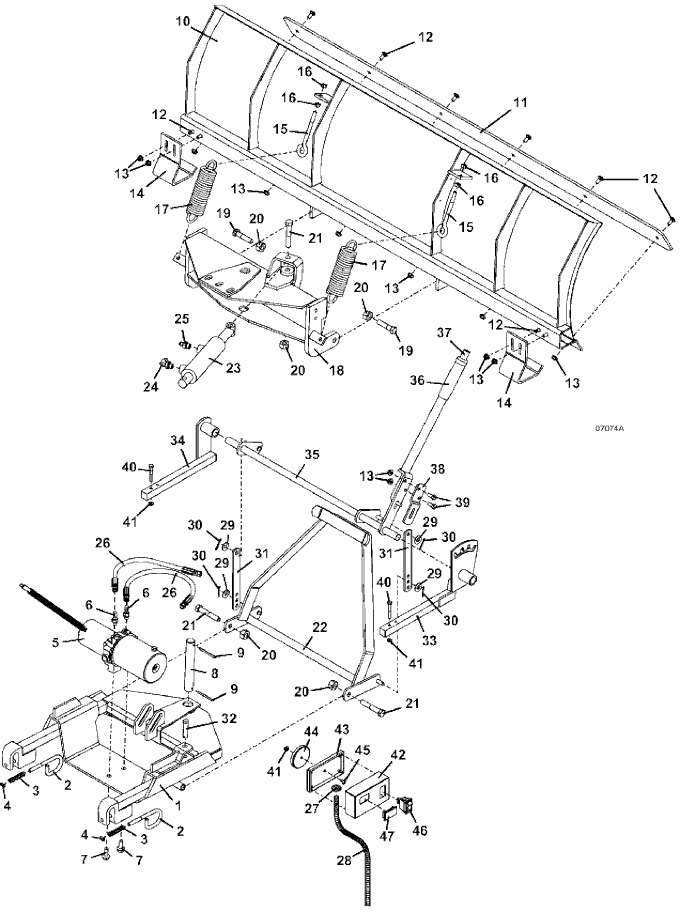

2006 to 2011 Hydraulic Lift Assembly for Hydraulic Bi-Directional Manual Lift Dozer Blade

2006 to 2011 Hydraulic Lift Assembly
Click On The Part Number For Details

Item #

Description

Part Number

1

Hydraulic Dozer Mount

644158

2

Deck Mount Latch Pin

730433

3

Compression Spring

283285

4

External Retainer

263490

5

Horizontal Hydraulic Pump Assembly

604428

6

Adapter O-Ring

360049

7

Flanged Whiz Bolt

253203

8

Pivot Pin

882128

9

Cotter Pin

260694

10

60 Moldboard

643731

11

60" Blade

783298

12

Carriage Bolt

247130

13

Whiz Nut

253035

14

Dozer Skid

733205

15

Eye Bolt

240068

16

Nut

254450

17

Extension Spring

283988

18

Hydraulic Dozer Pivot Mount

644549

19

Hex Bolt

243570

20

Lock Nut

253930

21

Hex Bolt

243600

22

Foot Lift

643524

23

Hydraulic Cylinder

290016

24

Adapter O-Ring

360048

25

Adapter O-Ring

360052

26

Hose Assembly

424307

27

Grommet

424216

28

Flex Guard Loom

422275

29

Washer

257040

30

Cotter Pin

260652

31

Linkage Strap

782555

32

Clevis Pin

261430

33

Lever Mount

643567

34

Left Lift Mount

643570

35

Dozer Lift Lever Assembly

604514

36

Thumb Release Handle Grip

833540

37

Thumb Button Push Rod

821675

38

Lever Guide

732593

39

Hex Bolt

243195

40

Hex Bolt

243040

41

Whiz Nut

253025

42

Dual Rocker Switch Box

833516

43

Switch Box Cover

833524

44

Round Base Magnet

102505

45

Truss Whiz Bolt

253170

46

2 Post 2 Position Rocker Switch

184177

47

Light Switch Hole Plug

422076

48

Dozer Bi-Directional Wiring Assembly

605857
