Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

TrimMaster™ Roller Kit With Side Roller

Attaches to: All Model 3452, 3461, and 3472 Decks,
All Model 3552, 3561, and 3572 Decks,
Model 9772, 9852, and 9861 Decks (Beginning with Serial Number 5141418)

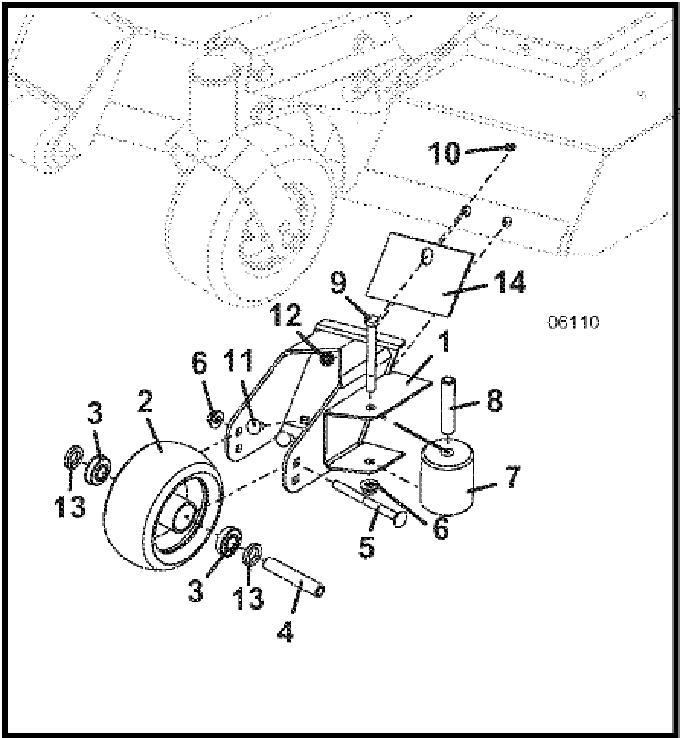

TrimMaster Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Scalp Roller Mount

643845

2

Semi-Pneumatic Wheel and Tire Assembly

484040

3

Ball Bearing

120050

4

Tube Bearing

942136

5

Carriage Bolt

247310

6

Whiz nut

253043

7

Side Guard Roller

822314

8

Tube Bearing

942135

9

Hex Bolt

243385

10

Flanged Hex Whiz bolt

253192

11

Carriage Bot

247135

12

Whiz Nut

253035

13

Washer

775002

14

Roller Spacer

775068

15

Roller Kit With Side Roller
(includes items 1-14)

503637

Return to Frontmount Attachment Index Return to Top
