Genuine OEM Grasshopper® Mower Parts Diagrams

2006 to 2011 Hydraulic Lift Assembly for Hydraulic Bi-Directional Manual Lift Dozer Blade

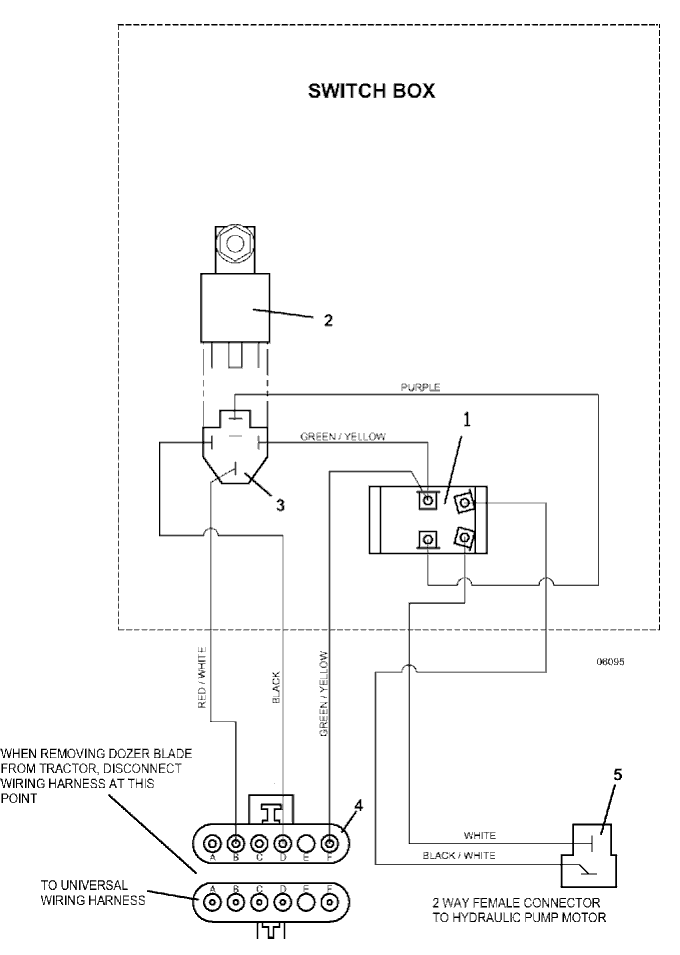

2007 to 2011 Wiring Diagram
Click On The Part Number For Details

Item #

Description

Part Number

1

2 Post 2 Position Rocker Switch

184177

2

12V DC Relay

184272

-

Type 1 6mm Pushon

184570

-

Faston Terminal

184581

-

5-Way Female Connector

184926

3

5-Way Female Connector

184926

4

6-Way Female Waterproof Connector

184969

5

2-Way Female Connector

184917

6

Dozer Bi-Directional Wiring Assembly

605857
