Genuine OEM Grasshopper® Mower Parts Diagrams

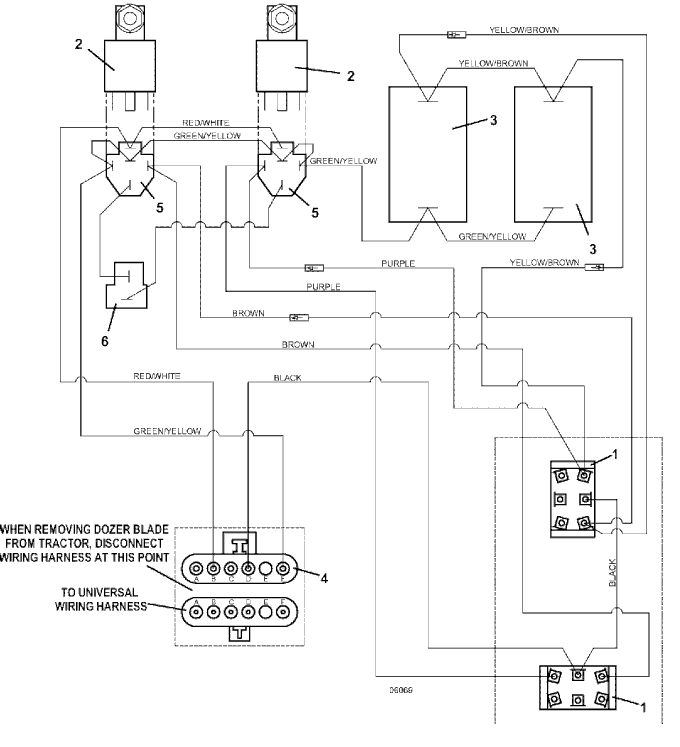

2007 Wiring Diagram for Hydraulic Dozer
Click On The Part Number For Details
Item # |
Description |
Part Number |
1 |
Toggle |
184083 |
- |
Toggle Switch Boot |
425200 |
- |
Keyed Washer |
770005 |
2 |
Heavy Duty Relay Assembly |
604712 |
3 |
Hydraulic Dozer Solenoid Valve |
144948 |
4 |
6-Way Female Waterproof Connector |
184969 |
5 |
5-Way Female Connector |
184926 |
6 |
2-Way Female Connector |
184917 |
7 |
Hydraulic Dozer Wiring Assembly |
605964 |
