Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

Electric Actuator Lift

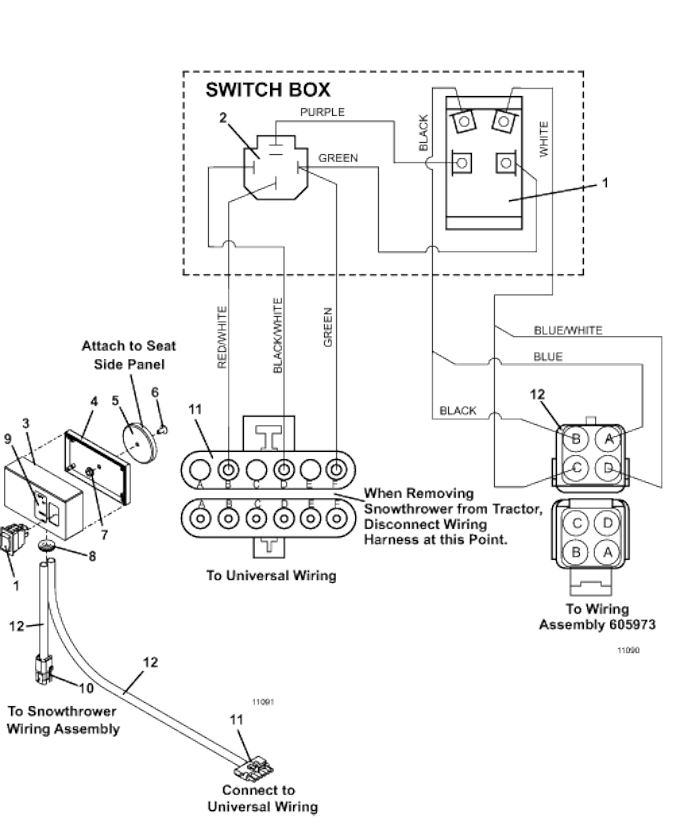

Control Box and Wiring Diagram

Control Box and Wiring Diagram

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

2 Post Rocker Switch

184177

2

12V DC Relay

184272

3

Rocker Switch Box

833515

4

Switch Box Cover

833524

5

Round Base Magnet

102505

6

Truss Whiz Bolt

253170

7

Whiz Nut

253025

8

Grommet

424216

9

Lift Rocker Switch Decal

162199

10

4-Way Male Connector

184977

11

6-Way Femail Connector

184969

12

Flex Guard Loom

422275

-

Tie

423147

13

4-Way Single Rocker Wiring Assembly

605841
