Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

718K   720K   •   PTO Shaft & Clutch Assembly

1992

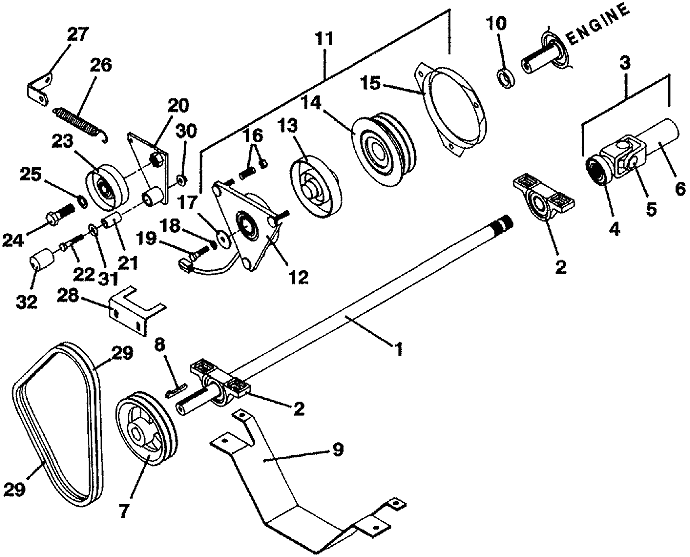

PTO Shaft and Clutch Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

37 Power Shaft

393759

2

Pillowblock SC Bearing

122044

3

UN Half Sleeve

398914

4

Quick Disconnect Splined Yoke

401019

5

Cross & Bearing

121010

6

Yoke with Sleeve

401015

7

Sheave

415650

8

Square Gib Key

281588

9

700 Sheave Guard

725256

10

Spacer SN326681 & Above

902587

-

Washer SN326681 & Above

257106

-

Washer SN326680 & Below

257107

-

Spacer SN326680 & Below

282622

11

MS 1.125 Clutch Kit Assembly

604182

-

MS 1.00 Clutch Kit Assembly

604180

12

Field Assembly

388854

-

Field Assembly

388796

13

Rotor Assembly

388855

-

Rotor Assembly

388797

14

Armature with Pulley

388792

15

Brake Drum

388793

16

Spring / Nut Assembly

388791

17

Washer

883803

18

Lock Washer

257422

19

Hex Bolt

243456

20

700 KC Idler Arm

824177

-

Oilite Bearing

121758

21

Pivot Shaft Bearing

881105

22

Hex Bolt

243355

23

Idler

393175

24

Hex Bolt

243805

25

Lock Washer

257452

26

Extension Spring with Swivel

283820

27

Idler Spring Bracket

732539

28

718 Clutch Bracket

729118

29

Belt

381914

30

Whiz Nut

253043

31

Washer

257040

32

Vinyl Cap

422098
