Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

718K   720K   •   Steering Assembly

1992

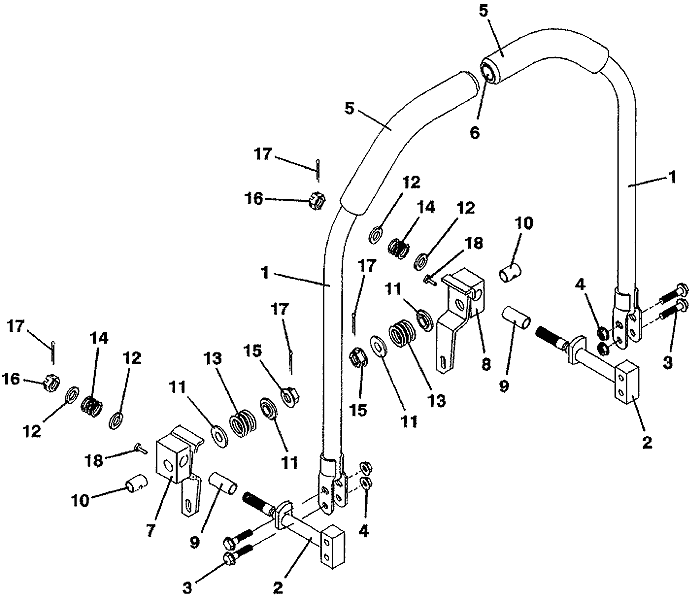

Steering Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Steering Lever

643497

2

Steering Lever Mount

603558

3

Hex Flange Whiz Bolt

253195

4

Whiz Nut

253035

5

Handle Grip

422179

6

.75 inch ID Vinyl Cap

422095

7

right Steering Ball Joint Pivot

643660

8

left Steering Ball Joint Pivot

643661

9

Nylon Bearing

422580

10

Nylon Bearing with Slot

422561

11

Washer

257067

12

Washer

257063

13

Compression Spring

283381

14

Compression Spring

283324

15

Slotted Flange Nut

830355

16

Nut with Nylon Insert

253470

17

Cotter Pin

260652

18

1/8 inch diameter Plastic Plug

422055

return to 718K 720K index return to top of page
