Genuine OEM Grasshopper Lawn Mower Parts

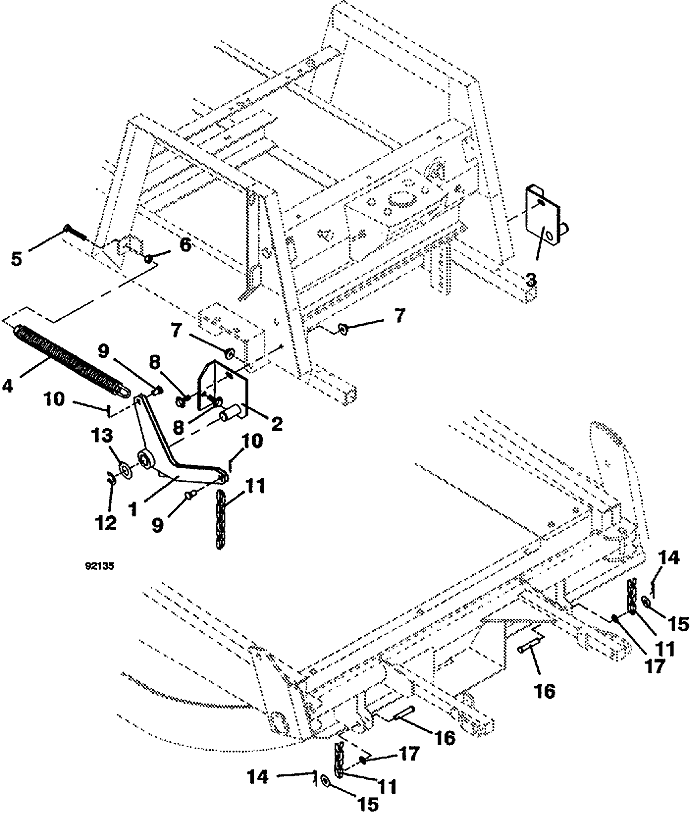

Genuine OEM Grasshopper® Mower Parts Diagrams

718K   720K   •   Traction Kit

1992

Traction Kit

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Rocker & Bearing Assembly

603715

2

right Rocker Pivot Mount

643611

3

left Rocker Pivot Mount

643612

4

Traction Kit Spring Assembly

605760

5

Hex Bolt

243361

6

Nut

254450

7

Whiz Nut

253043

8

Flange Whiz Bolt

253203

9

Clevis Pin

261336

10

Cotter Pin

260648

11

Lift Chain with 6 Links

820322

12

External Retainer

263529

13

18 GA Bushing Washer

257092

14

Hair Pin

260523

15

Washer

257040

16

Clevis Pin

261362

17

Push On Retainer

262950
