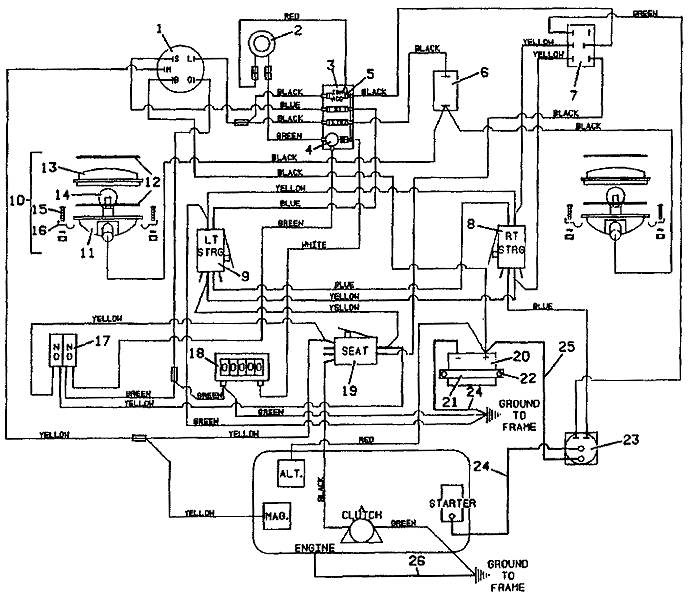

Genuine OEM Grasshopper® Mower Parts Diagrams
718K • Wiring & Lights
1990
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
Briggs & Stratton / Kohler Key Switch |
183806 |
- |
Ignition Key with Cover |
101101 |
- |
Nut |
254498 |
- |
Plastic Panel |
422078 |
2 |
Light Indicator |
182310 |
3 |
Oil Indicator Light |
182327 |
4 |
718K Mounted Fuse Block |
603138 |
5 |
6 amp Fuse |
181540 |
6 |
Toggle Light Switch |
183950 |
7 |
PTO Switch & Cover Assembly |
604796 |
8 |
Safety Lever Switch |
183865 |
- |
Steering Switch Mount - right |
720160 |
9 |
Safety Lever Switch |
183865 |
- |
Steering Switch Mount - left |
720161 |
10 |
Worklamp Assembly (NO LONGER AVAILABLE) |
182265 |
11 |
Rectangular Lamp Housing |
182350 |
12 |
Light Assembly Gasket |
420550 |
13 |
Rectangular Lamp Lens (NO LONGER AVAILABLE) |
182400 |
14 |
Worklamp Light Bulb |
182000 |
15 |
Machine Screw |
250258 |
16 |
Conduit Clip |
180635 |
17 |
Brake Interlock Switch |
183892 |
18 |
Snap-In Hour Meter |
141551 |
- |
Hour Meter Mounting Bracket |
722060 |
19 |
Safety Lever Switch |
183865 |
- |
Machine Screw |
250318 |
- |
Clevis Pin |
261328 |
- |
Compression Spring |
283322 |
- |
Seat Safety Switch & Mount Assembly |
603790 |
- |
Seat Switch Mount |
724100 |
20 |
12 Volt Wet Battery |
180125 |
21 |
Battery Hold-Down |
822410 |
22 |
Hook Bolt |
240115 |
23 |
4 Post Solenoid Relay Switch |
184251 |
24 |
11" Red Battery Cable |
180310 |
25 |
24" Red Battery Cable |
180322 |
- |
Starter Terminal Boot |
425219 |
26 |
12" Black Battery Cable |
180355 |
27 |
718K Wiring Group |
603833 |
