grasshopper

720K
20HP Kohler

Year Model: 1995

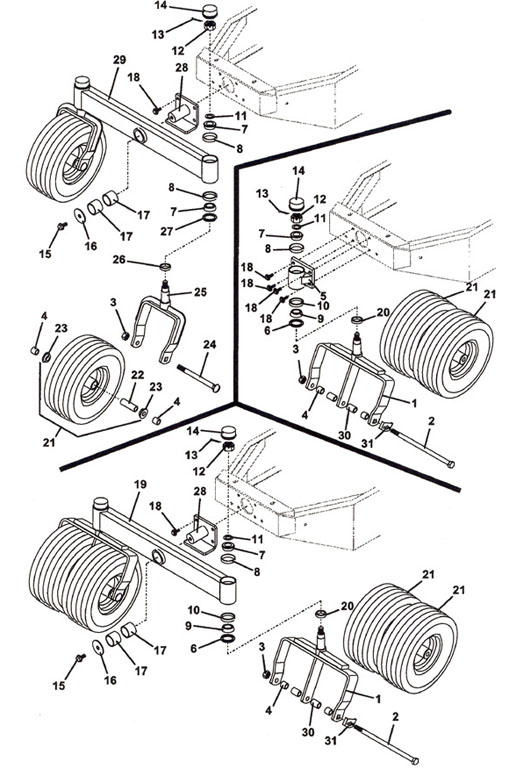

Tail Wheel Options

Tail Wheel Options


Click On The Part Number For Details

Item #

Description

Part Number

1

Dual Fork With Nut

604363

2

Bolt

604153

3

Lock Nut

253970

4

Axle Spacer

902425

5

Pivot Housing - Rear Dual Fork

604595

6

Seal

125855

7

Tapered Bearing

122522

8

Bearing Cup

123522

9

Bearing Taper

122523

10

Bearing Cup

123521

11

Washer

257091

12

Nut

254502

13

Cotter Pin

260668

14

Dust Cap

481432

15

Whiz Bolt

253243

16

Washer

257061

17

Oilite Bearing Reamed

833275

18

Bolt

253203

19

Axle Beam w/Bushing - Dual

824508

20

Spacer

830420

21

Wheel & Tire w/Bearings & Spacer 13 x 6.50 x 6

483861

22

Bearing Spacer

902475

23

Wheel Bearing

120050

24

Bolt

247725

25

Rear Fork With Nut

604364

26

Spacer

282615

27

Seal

125855

28

Rear Axle Pivot

604597

29

Axle Beam w/Bushing

824510
