Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

720K   725K   •   Tail Wheel Assembly Options, part 2

1999

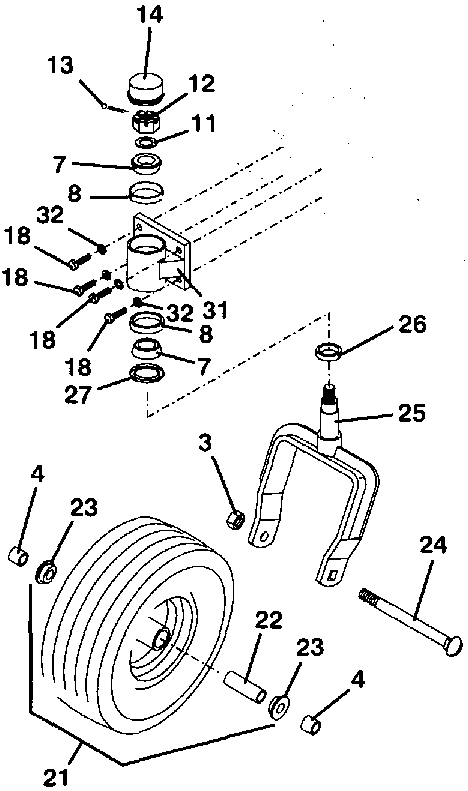

Tail Wheel Assembly 2

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

3

Lock Nut

253970

4

Axle Spacer

902425

7

Tapered Bearing

122522

8

Bearing Cup

123522

11

14 GA Bushing Washer

257091

12

Lock Nut

253992

13

Cotter Pin

260668

14

Dust Cap

481432

18

GR 8 Hex Bolt

243334

21

13 x 6.5 x 6 Wheel & Tire with Bearing & Spacer

483865

22

rear Wheel Bearing Spacer

902475

23

Ball Bearing

120050

24

Carriage Bolt

247725

25

Fork & Lock Nut Assembly

604365

26

Spacer

282615

27

Seal

125855

31

Right Rear Fork Pivot Housing Assembly

604596

32

Lock Washer

257412

return to 720K 725K index return to top of page
