Genuine OEM Grasshopper Lawn Mower Parts

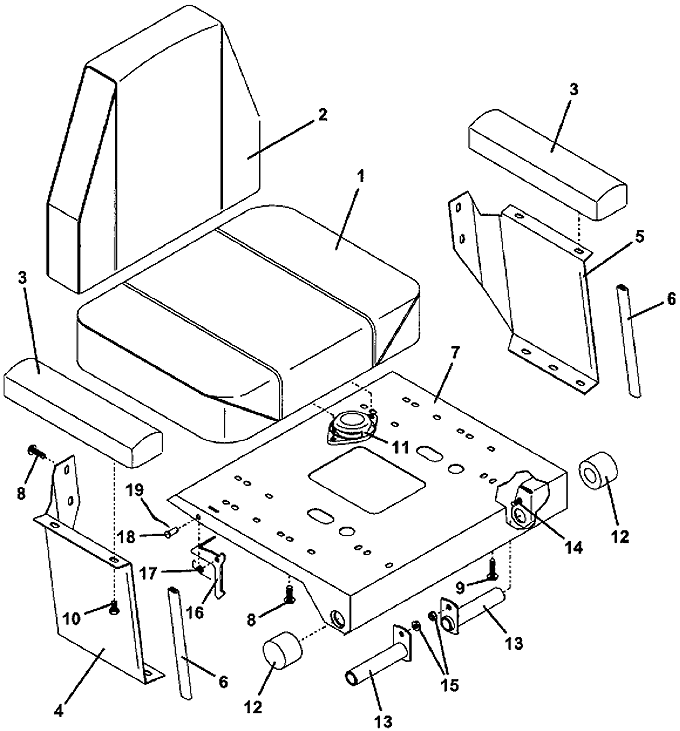

Genuine OEM Grasshopper® Mower Parts Diagrams

720K   725K   •   Seat Assembly

2000

Seat Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Formed Cordura Seat Cushion

321521

2

Cordura Back Cushion

321519

3

Cordura Arm Rest

321522

4

right Side Member

724310

5

left Side Member

724311

6

Seat Edge Trim

822630

7

Seat Platform ISO w/a

643912

8

Hex Flange Whiz Bolt

253193

9

Hex Whiz Bolt

253194

10

Hex Flange Whiz Bolt

253191

11

Seat Switch

183870

12

Seat Isolator

424095

13

Seat Hinge Pin

644618

14

Hex Flange Whiz Bolt

253192

15

Whiz Nut

253035

16

Seat Latch

724112

17

Torsion Spring

284408

18

Clevis Pin

261284

19

Cotter Pin

260648

20

Cordura Seat Assembly without Logo

604740

return to 720K 725K index return to top of page
