Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

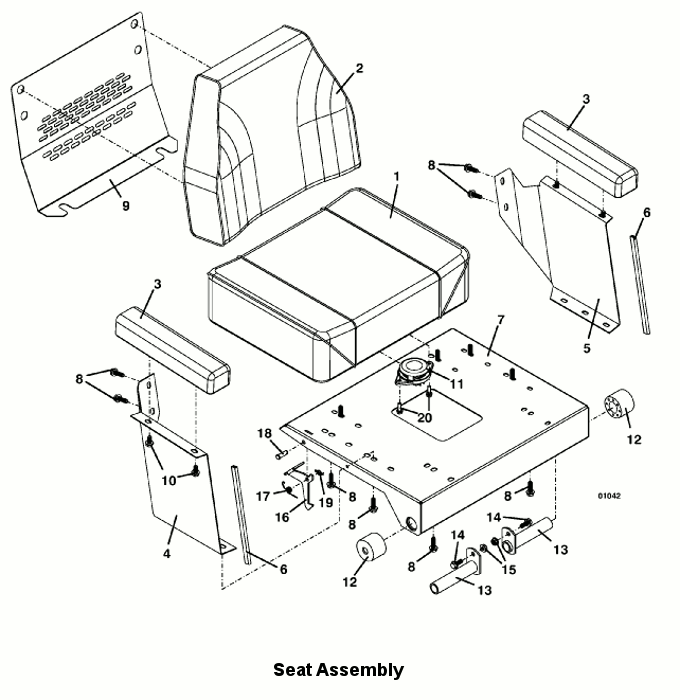

720K   Seat Assembly

2003

Seat Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Formed Cordura Seat Cushion

321521

2

Cordura Back Cushion

321519

3

Cordura Arm Rest

321522

4

right Side Member

724310

5

left Side Member

724311

6

Seat Edge Trim

822630

7

Seat ISO

643912

8

Hex Flange Whiz Bolt

253193

9

Seat Reinforcement Panel

722388

10

Hex Flange Whiz Bolt

253191

11

Seat Switch

183870

12

Seat Isolator

424095

13

Seat Hinge Pin

644618

14

Hex Flange Whiz Bolt

253192

15

Whiz Nut

253035

16

Seat Latch

724112

17

Torsion Spring

284408

18

Clevis Pin

261280

19

Cotter Ring

260606

20

Hex Bolt Whiz

253175

21

Cordura Seat Assembly without Logo

604740
