720K   Tail Wheel Assembly Options

2004

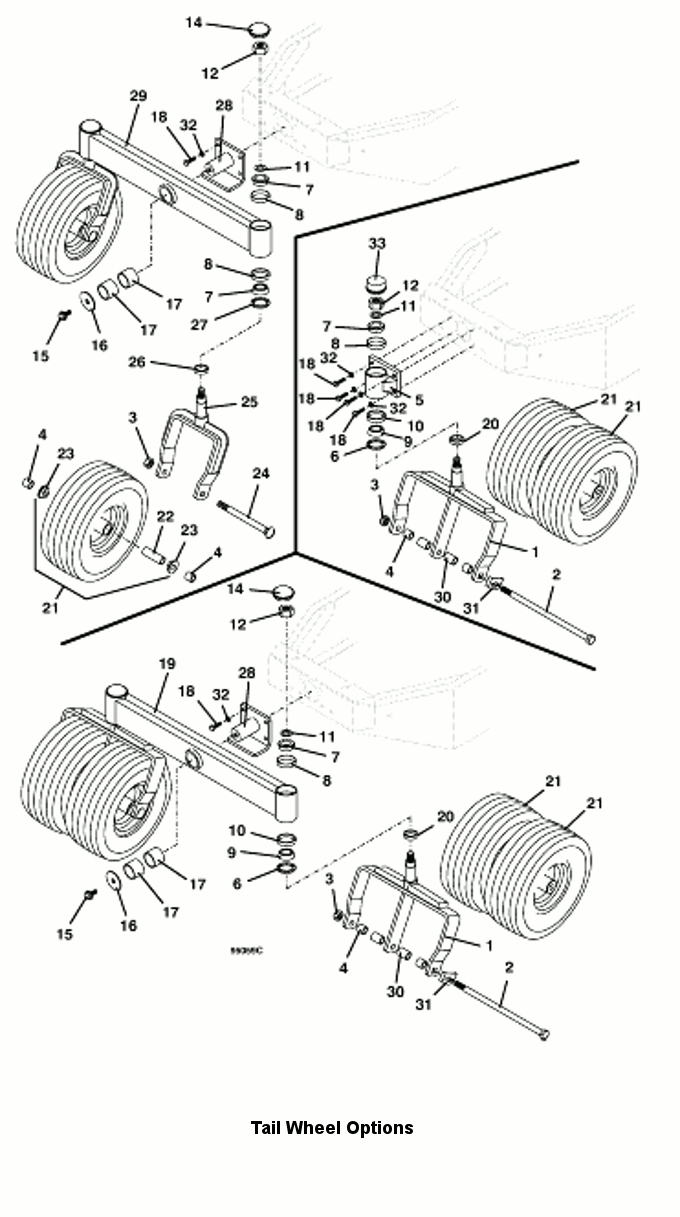

Tail Wheel Assembly 1

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Dual Fork & Lock Nut Assembly

604366

2

Hex Bolt

243922

3

Lock Nut

253970

4

Axle Spacer

902425

5

Dual Fork Pivot Housing Assembly

604595

6

Seal

125855

7

Tapered Bearing

122522

8

Bearing Cup

123522

9

Tapered Bearing

122523

10

Bearing Cup

123521

11

14 GA Bushing Washer

257091

12

Lock Nut

253992

14

Dust Cap - Domed

481434

15

Whiz Bolt

253243

16

Washer

257061

17

Reamed Oilite Bearing

833275

18

GR 8 Hex Bolt

243334

19

Dual-Wide Beam

824508

20

Spacer

830420

21

13 x 6.5 x 6 Wheel & Tire with Bearing & Spacer

483865

-

13 x 6.5 x 6 Ribbed Tire

482355

-

6 x 4.5 Tan Wheel without Bearings

483306

22

rear Wheel Bearing Spacer

902475

23

Ball Bearing

120050

24

Carriage Bolt

247725

25

Fork & Lock Nut Assembly

604365

26

Spacer

282615

27

Seal

125855

28

Rear Axle Pivot Assembly

604597

29

Dual Wheel Beam

824510

30

Dual-Wide Tire Spacer

902427

31

Fork Bolt Lock

723008

32

Lock Washer

257412

33

Dust Cap

481432
