Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

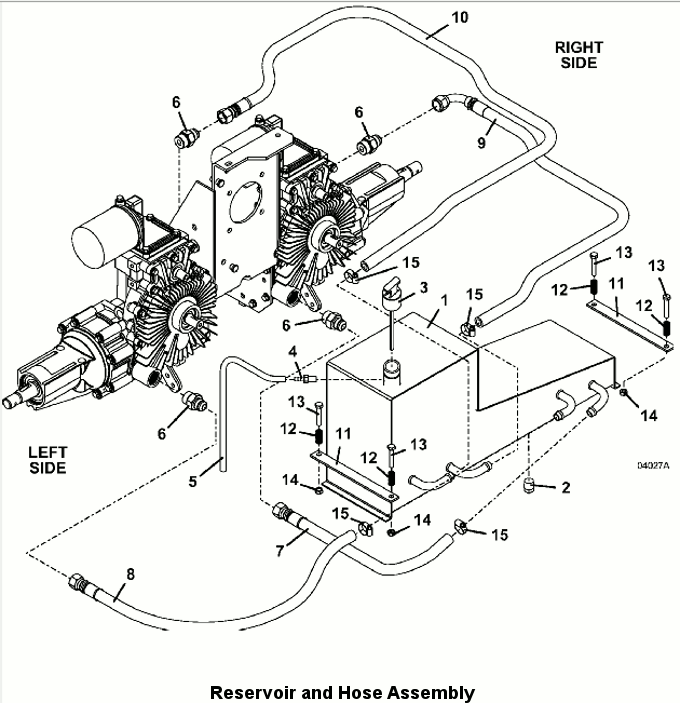

720K   Reservoir & Hose Assembly

2005

Reservoir Hose Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Reservoir Assembly with Dipstick

603711

2

3/8 inch Metal Pipe Plug

365515

3

Plastic Oil Reservoir Dipstick

100729

4

Straight Barbed Fitting

363826

5

Clear Vent Hose

821724

6

Steel O-Ring Flare Fitting

363834

7

Hose Assembly

424336

8

Hose Assembly

424341

9

Hose Assembly

424347

10

Hose Assembly

424359

11

Reservoir Hold Down Bracket

774084

12

Compression Spring

283252

13

Hex Bolt

243035

14

Nut with Nylon Insert

253440

15

Screw Type Hose Clamp

280274
