Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

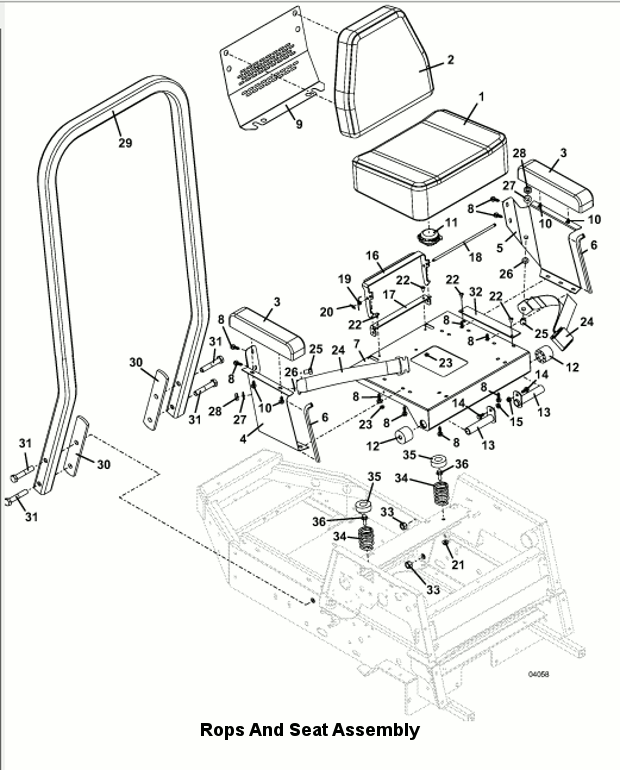

720K   Seat Assembly

2005

Seat Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Cordura Seat Cushion

321518

2

Cordura Back Cushion

321519

3

Cordura Contoured Arm Rest

321523

4

Seat Side - Extended Armrest RT

723386

5

Seat Side - Extended Armrest LT

723387

6

Seat Edge Trim

822630

7

Dual Latch Seat Mount

644816

8

Hex Flange Whiz Bolt

253193

9

Seat Reinforcement Panel

722388

10

Hex Flange Whiz Bolt

253191

11

Seat Switch - Twist In

183871

12

Seat Isolator

424095

13

Seat Hinge Pin

644618

14

Hex Flange Whiz Bolt

253192

15

Whiz Nut

253035

16

Dual Latch Seat

754240

17

Dual Latch Mount Bracket

754226

18

Seat Latch Pivot Pin

730230

19

Torsion Spring

284408

20

Cotter Ring

260606

21

Nut Whiz

253043

22

Bolt Whiz Truss

253176

23

Nut Whiz

253025

24

Non Retract Seat Belt

324200

25

Hex Bolt

243551

26

Washer

257063

27

Washer

257062

28

Nylon Nut Insert

253470

29

ROPS Tube 700/900

324103

30

ROPS Spacer 700/900

901645

31

Hex Bolt

243840

32

Seat Panel Flap 700/900

424176

33

Lock Nut

253970

34

Compression Spring

283516

35

Seat Spring Cap

422127

36

Flange Bolt Whiz

253203
