Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

720K   Traction Kit

2005

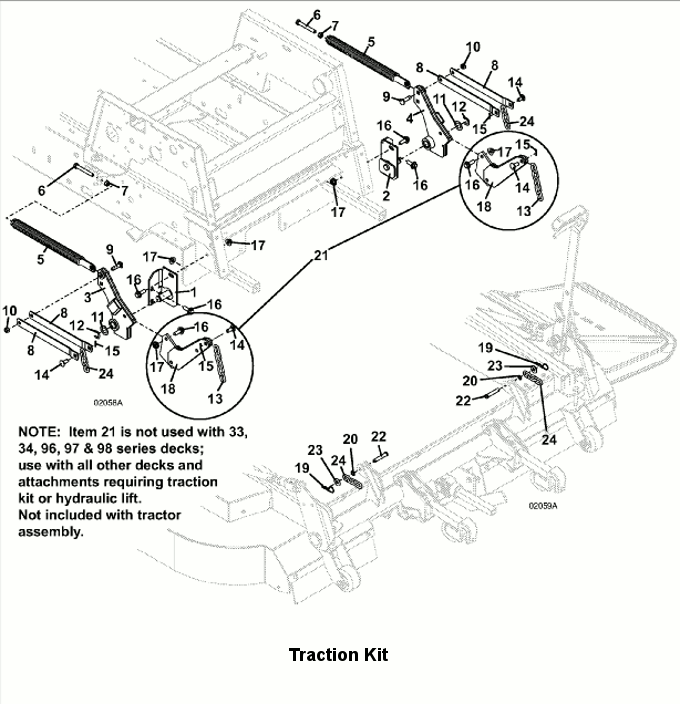

Traction Kit

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Lift Pivot - RT

644545

2

Lift Pivot - LT

644546

3

Rocker w/o Extension - RT

603701

-

Oilite Bearing

121766

4

Rocker w/o Extension - LT

603702

-

Oilite Bearing

121766

5

Spring Plug Nut Assembly

604762

6

Hex Bolt

243395

7

Nut

254450

8

600 w/SL Deck Strap Lift

732410

9

Carriage Bolt

247254

10

Lock Nut

253890

11

18 GA Bushing Washer

257092

12

External Retainer

263529

13

Lift Chain

820320

14

Clevis Pin

261339

15

Cotter Pin

260648

16

Flange Bolt Whiz

253203

17

Nut Whiz

253043

18

Rocker Arm Extension

644706

19

Hair Pin

260523

20

Push On Retainer

262950

21

700/900 Rocker Extension Kit

604708

22

Clevis Pin

261362

23

Washer

257040

24

Washer

820317
